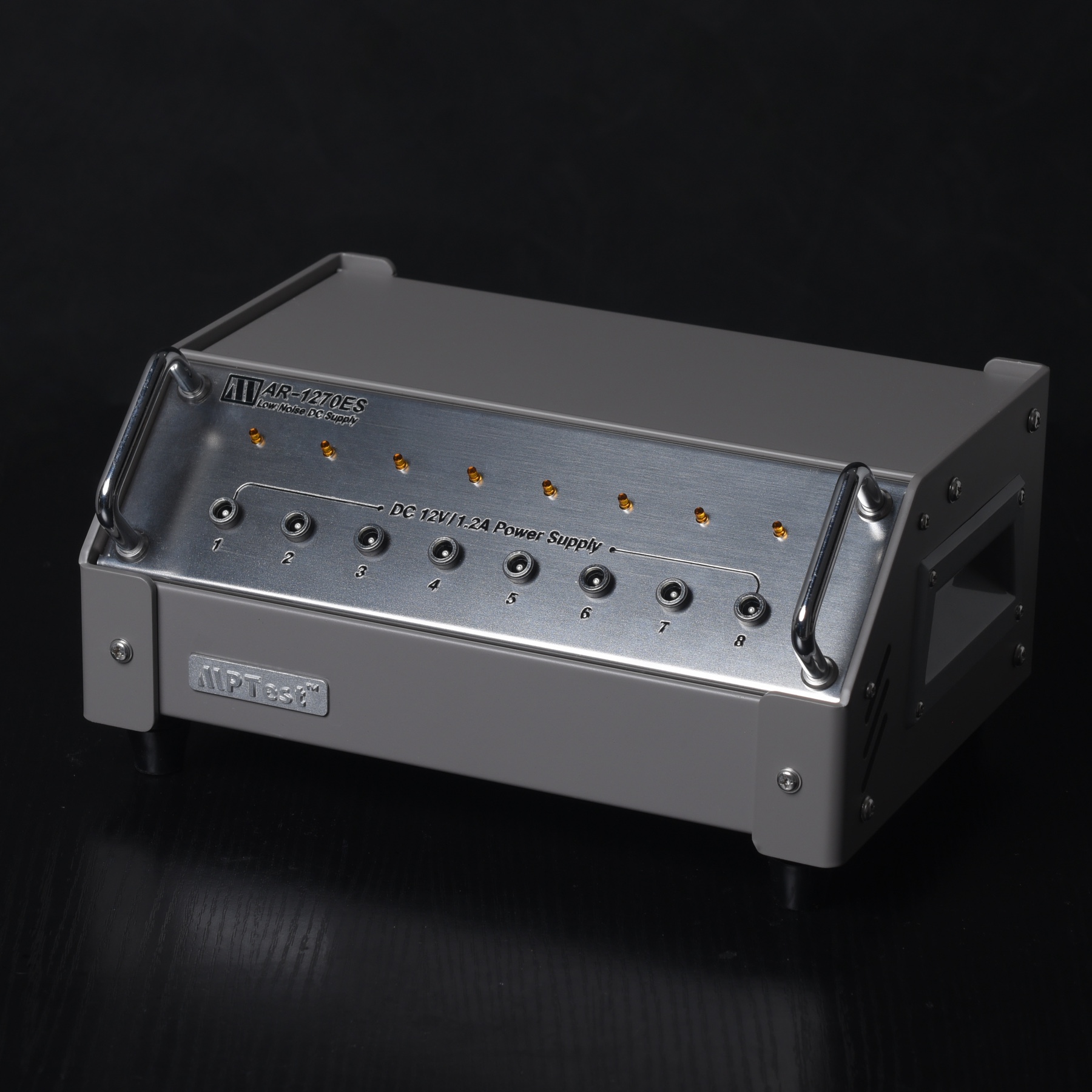

Low-noise DC power supply
The AR-1270ES is a low-noise 12V DC power supply specifically designed for oil-filled constant temperature standard resistors. It can simultaneously supply power to up to 8 resistors, with each channel equipped with an indicator light that illuminates during operation. Utilizing a traditional transformer design without any switching components, the unit minimizes harmonic distortion to an extreme degree. Both the AC input voltage and frequency can be customized to meet user requirements.
Specifications
| Power Output | DC12V, 1.2A (Low Noise) |
| Number of channels | 8-Channels |
| Operating Voltage | 110VAC ±10%, 60Hz (Customizable Technical Specifications) |
| Rated Power | Approximately 120W (Max) |
| Dimensions | 260mm (10.2") x 190mm (7.5") x 130mm (5.1") |
| Net Weight | Approximately 4 kg (8.8 lb) |
