Ultra-Precision Seawater Bath

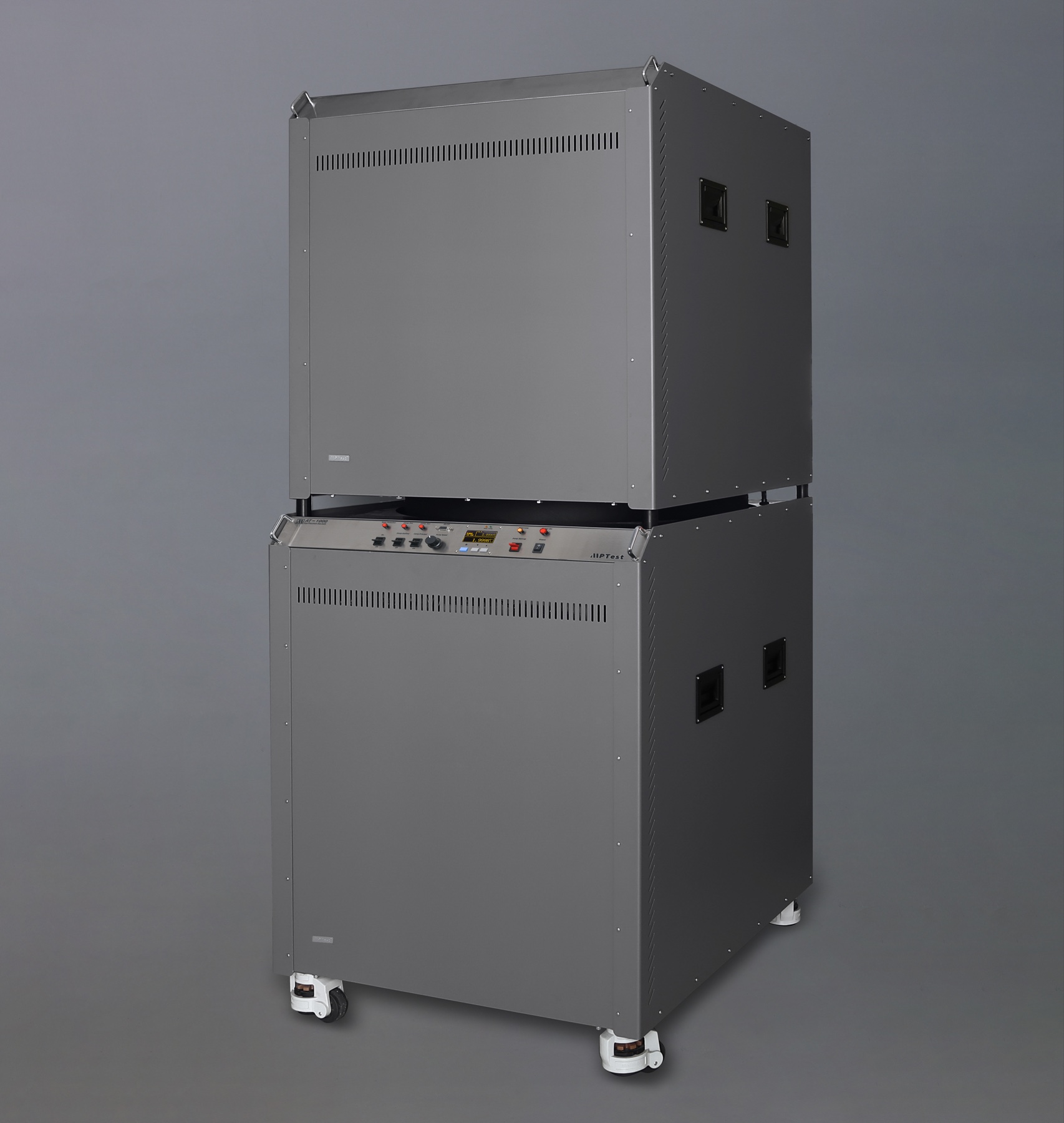

The AT-1000 is specifically engineered for the calibration and value transfer of oceanographic sensors. Its titanium alloy bath uses seawater as the working medium, featuring a workspace diameter of 550 mm (21.65 inches) and an exceptional depth of 900 mm (35.43 inches). The near-1-meter bath depth enhances temperature stability performance, while the integrated thermostat minimizes environmental temperature interference. Combined with MPtest's jet-stream agitation technology and a high-precision temperature control system, it achieves a temperature stability of ±0.0003°C at 2°C. Equipped with MPtest's proprietary rapid cooling technology, the bath enables fast temperature reduction, making it ideal for high-throughput calibration of multiple probes in marine sensor manufacturing and R&D applications.
Specifications
| Operating Temperature | Seawater: -1.5 ℃ to 50 ℃ (29.3°F to 122°F) Seawater Salinization: -5 ℃ to 50 ℃ (23°F to 122°F) |
| Working Area | Diameter 550mm (21.6"), Depth 900mm (35.4") |
| Wetted Parts | Titanium Alloy |
| Liquid Volume | Approximately 300 liters (79.25 gal) |
| Stirring Method | Jet stirring, three-speed adjustable |
| Temperature Control Method | Fully digital PID control |
| Display Resolution | 0.0001 ℃ |
| Temperature Stability | ±0.0003 ℃ /10min at 2 ℃ (35.6°F) to 35 ℃ (95°F) |
| Temperature Uniformity | ±0.0005 ℃ at 2 ℃ (35.6°F) to 35 ℃ (95°F) |
| Heating Time | 120 minutes from 25°C(77°F) to 40°C(104°F) |
| Cooling Time | 90 minutes from 25°C(77°F) to 5°C(41°F) |
| Operating Voltage | 220VAC±10% ， 60Hz (Customizable Technical Specifications) |
| Rated Power | Approximately 6500W |
| Dimensions | 680mm (26.8") x 820mm (32.3") x 1600mm (63") |
| Net Weight | Approximately 150 kg (330.7 lb) |
