Infrared Ear Thermometers Black Body Radiation Source System

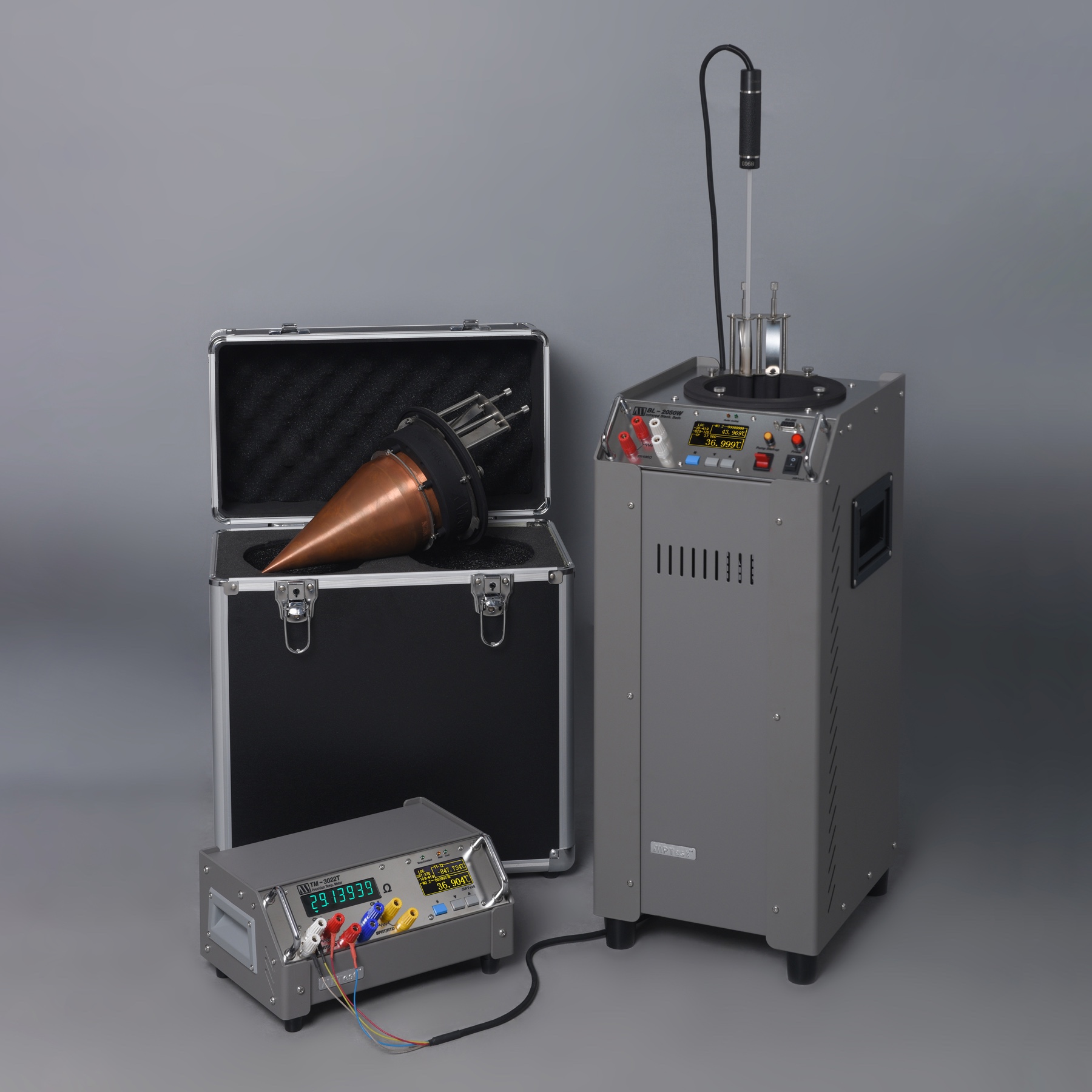

The traceability of the BL-2050W infrared blackbody standard device for human body temperature measurement primarily relies on the temperature control and uniformity of the constant-temperature bath to achieve an exceptional emissivity index exceeding 0.999 for its blackbody cavity. The system consists of a portable constant-temperature bath cooled by semiconductor thermoelectric modules (for easy transportation), a human ear temperature blackbody cavity, a standard platinum resistance thermometer, and a high-precision digital temperature display. The blackbody cavity can be equipped with a standard bayonet mount, allowing users to select different types of blackbody cavities according to their specific requirements.
Specifications
| Operating Temperature | Antifreeze/Water: 15 ℃ to 55 ℃ (59°F to 122°F) |
| Working Area | Diameter 138mm (5.4"), Depth 300mm (15.7") |
| Wetted Parts | 304 stainless steel |
| Liquid Volume | Approximately 10 liters (2.64 gal) |
| Stirring Method | Jet stirring |
| Temperature Control Method | Fully digital PID control |
| Display Resolution | 0.001 ℃ |
| Temperature Stability | ±0.002 ℃ /10min |
| Temperature Uniformity | ±0.005 ℃ |
| Heating Time | 20 minutes from 25°C(77°F) to 45°C(113°F) |
| Cooling Time | 30 minutes from 45°C(113°F) to 35°C(95°F) |
| Operating Voltage | 110VAC ±10%, 60Hz (Customizable Technical Specifications) |
| Rated Power | Approximately 220W |
| Dimensions | 235mm (9.3") x 280mm (11") x 560mm (22") |
| Net Weight | Approximately 17 kg (37.5 lb) |
