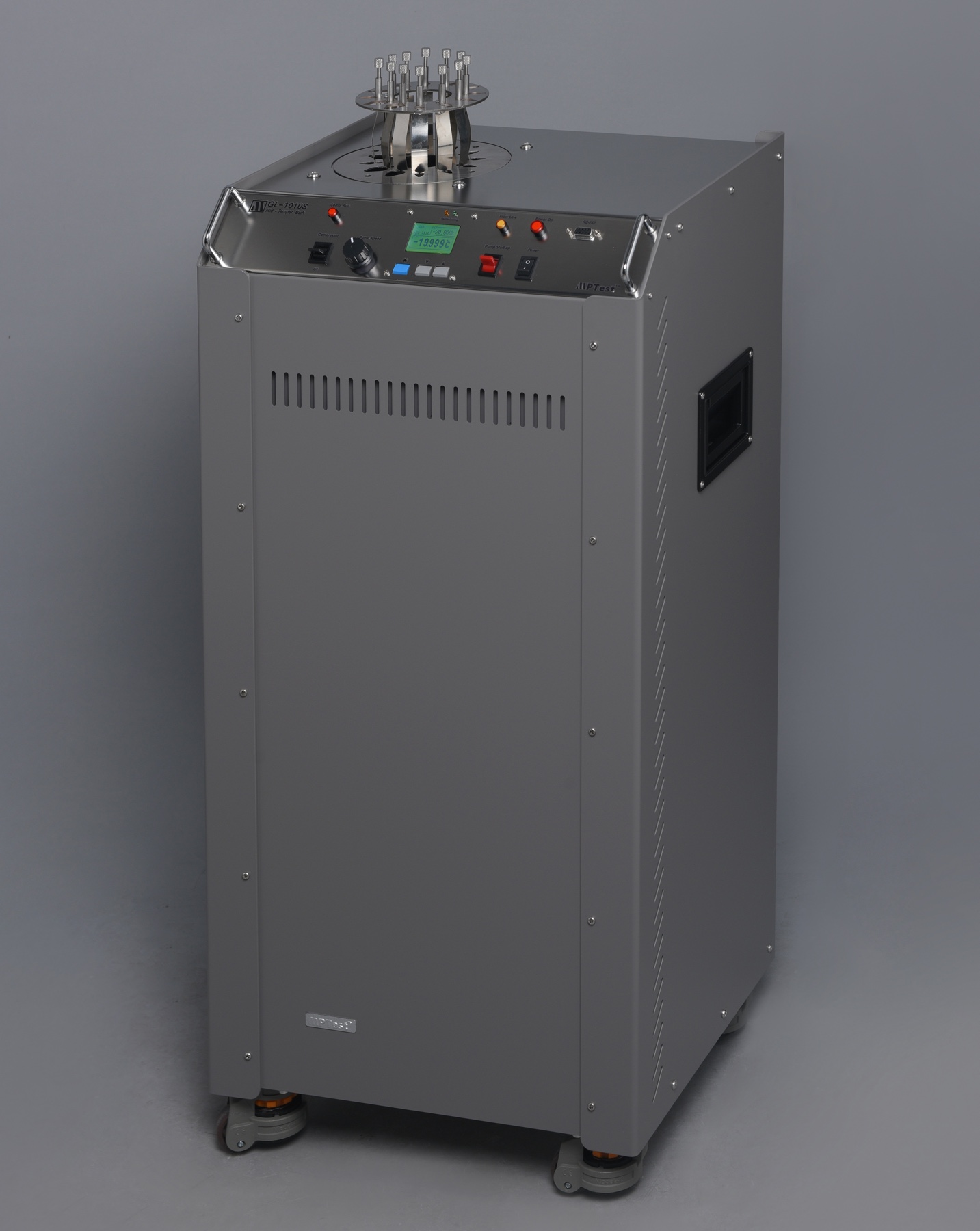

Medium-Temperature Calibration Bath
The GL-1010S is a medium-temperature calibration bath designed for metrological verification in temperature laboratories. It uses antifreeze as the working medium and features an aperture diameter of 138 mm (5.43 inches) and a bath depth of 510 mm (20.1 inches), making it particularly suitable for testing and calibrating long-stem thermometers in laboratory environments. Across the entire temperature range of -20°C (-4°F) to 100°C (212°F), the bath achieves a temperature stability of ±0.002°C, providing reliable conditions for high-precision temperature calibration. Equipped with a rapid cooling system, it delivers efficient and accurate performance. The integration of MPtest's jet-stream agitation technology ensures low vibration and quiet operation, maintaining a tranquil laboratory environment.
Specifications
| Operating Temperature | Antifreeze: -10 ℃ to 100 ℃ (14°F to 212°F) |
| Working Area | Diameter 138mm (5.4"), Depth 510mm (20.1") |
| Wetted Parts | 304 stainless steel |
| Liquid Volume | Approximately 13 liters (3.4 gal) |
| Stirring Method | Jet stirring, three-speed adjustable |
| Temperature Control Method | Fully digital PID control |
| Display Resolution | 0.001 ℃ |
| Temperature Stability | ±0.002 ℃ /10min at 0 ℃ (32°F) ±0.003 ℃ /10min at 50 ℃ (122°F) |
| Temperature Uniformity | ±0.004 ℃ at 0 ℃ (32°F) ±0.0005 ℃ at 50 ℃ (122°F) |
| Heating Time | 110 minutes from 25°C(77°F) to 90°C(122°F) |
| Cooling Time | 100 minutes from 25°C(77°F) to 0°C(32°F) |
| Operating Voltage | 110VAC ±10%, 60Hz (Customizable Technical Specifications) |
| Rated Power | Approximately 1500W |
| Dimensions | 405mm (15.9") x 350mm (13.8") x 870mm (34.3") |
| Net Weight | Approximately 40 kg (88.2 lb) |
