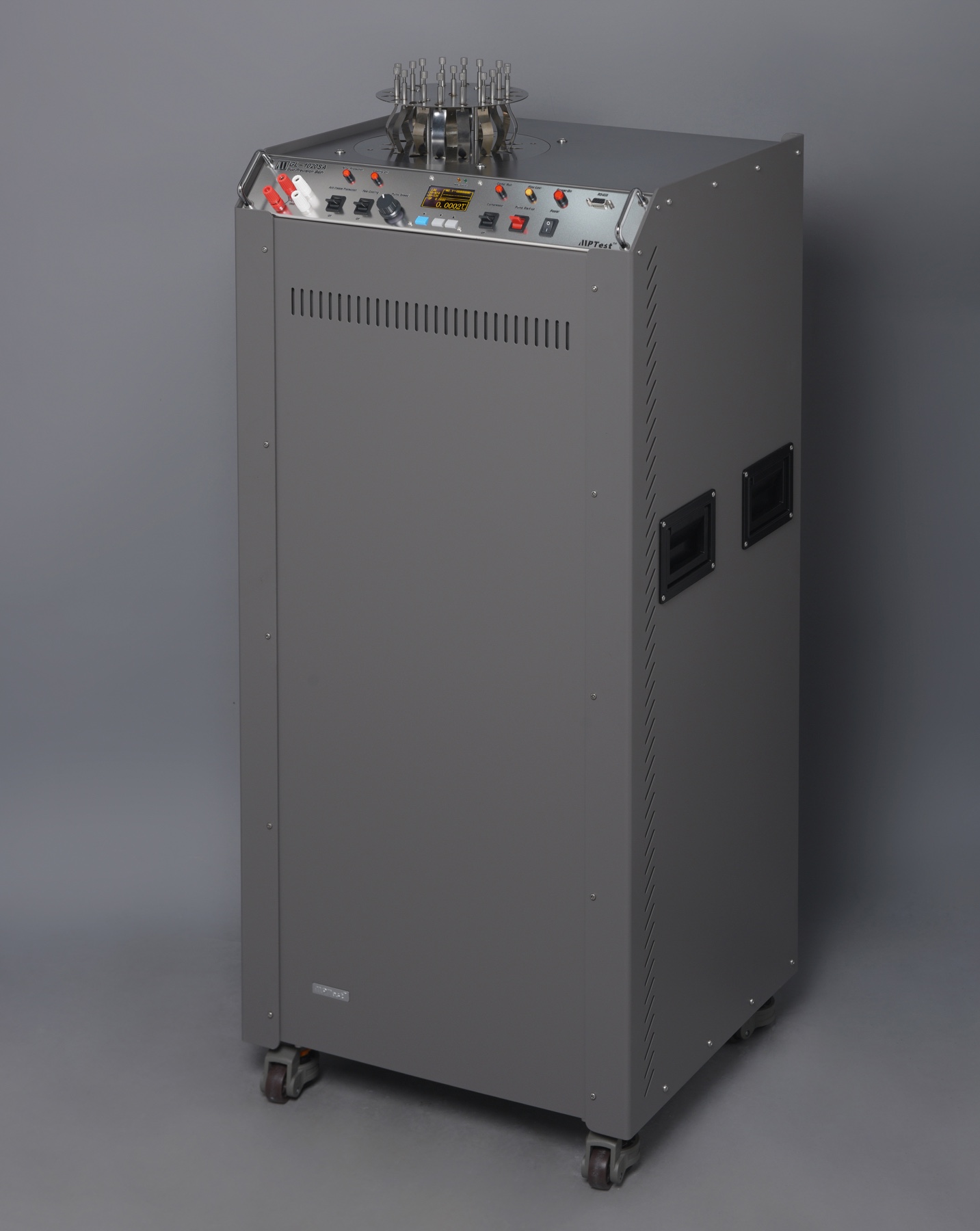

High-Accuracy Temperature Calibration Bath
The GL-1020SA ultra-precision thermostatic bath is a top-performing model in MPtest's compact product series, featuring exceptional temperature control with a stability of ±0.0007°C per 10 minutes. Its temperature range spans -10°C (14°F) to 100°C (212°F), with an effective aperture diameter of 220 mm (8.66 inches) and a bath depth of 520 mm (20.47 inches), offering a liquid capacity of approximately 35 liters. Designed with a cylindrical bath structure, it integrates MPtest's proprietary jet-stream agitation technology and a rapid cooling system, achieving an optimal balance between efficiency and precision while maintaining ultra-low noise levels during operation. This bath ensures reliable conditions for the calibration of high-resolution, high-stability temperature sensors and provides an advanced platform for the comparative verification of high-grade thermometers.
Specifications
| Operating Temperature | Antifreeze: -10 ℃ to 100 ℃ (14°F to 212°F) |
| Working Area | Diameter 220mm (7.9"), Depth 520mm (20.5") |
| Wetted Parts | 304 stainless steel |
| Liquid Volume | Approximately 36 liters (9.5 gal) |
| Stirring Method | Jet stirring, three-speed adjustable |
| Temperature Control Method | Fully digital PID control |
| Display Resolution | 0.0001 ℃ |
| Temperature Stability | ±0.0007 ℃ /10min at 0 ℃ (32°F) |
| ±0.002 | ℃ /10min at 50 ℃ (122°F) |
| Temperature Uniformity | ±0.002 ℃ at 0 ℃ (32°F) |
| ±0.005 | ℃ at 50 ℃ (122°F) |
| Heating Time | 30 minutes from 25°C(77°F) to 50°C(122°F) |
| Cooling Time | 120 minutes from 25°C(77°F) to 0°C(32°F) |
| Operating Voltage | 110VAC ±10%, 60Hz (Customizable Technical Specifications) |
| Rated Power | Approximately 3800W |
| Dimensions | 485mm (19.1") x 435mm (17.1") x 1060mm (41.7") |
| Net Weight | Approximately 70 kg (154.3 lb) |
