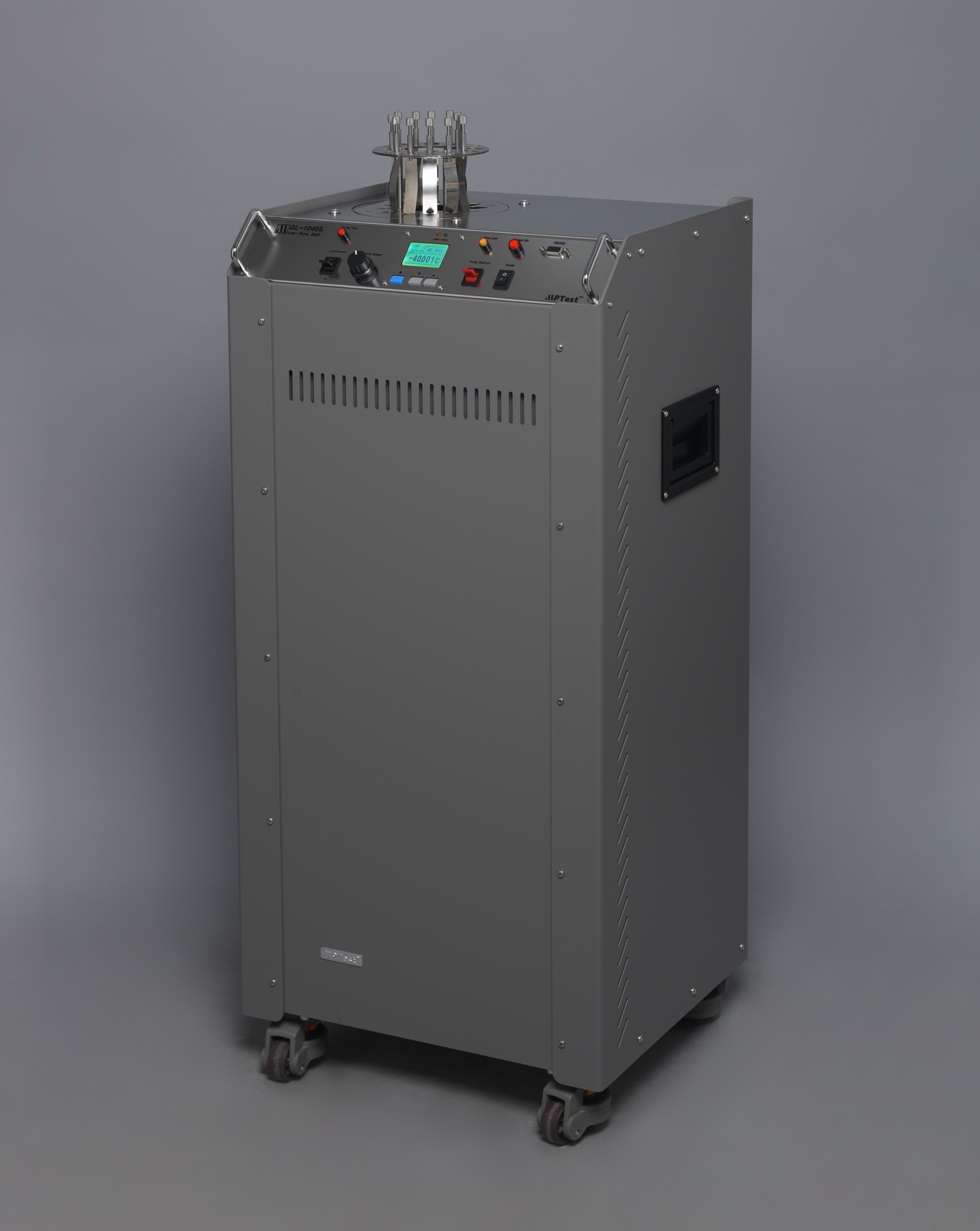

Low-Temperature Calibration Bath
The GL-1040S is a low-temperature calibration bath designed for metrology and verification in temperature laboratories using alcohol as the working medium. It features an aperture diameter of 138 mm (5.43 inches) and a bath depth of 510 mm (20.1 inches), making it particularly suitable for testing and calibrating long-stem thermometers in laboratory environments. Across the entire temperature range of -42°C to 50°C (-43.6°F to 122°F), the bath achieves a temperature stability of ±0.003°C, providing reliable conditions for high-precision temperature calibration. Equipped with a rapid cooling system, it delivers excellent performance in both efficiency and accuracy. The incorporation of MPtest's jet-stream agitation technology ensures low vibration and quiet operation, contributing to a quiet laboratory environment.
Specifications
| Operating Temperature | Alcohol: -42 ℃ to 50 ℃ (-43.6°F to 122°F) |
| Working Area | Diameter 138mm (5.4"), Depth 510mm (20.1") |
| Wetted Parts | 304 stainless steel |
| Liquid Volume | Approximately 13 liters (3.43 gal) |
| Stirring Method | Jet stirring, three-speed adjustable |
| Temperature Control Method | Fully digital PID control |
| Display Resolution | 0.001 ℃ |
| Temperature Stability | ±0.002 ℃ /10min at 0 ℃ (32°F) ±0.003 ℃ /10min at -40 ℃ (-40°F) |
| Temperature Uniformity | ±0.003 ℃ at 0 ℃ (32°F) ±0.01 ℃ at -40 ℃ (-40°F) |
| Heating Time | 60 minutes from -40°C(-40°F) to 25°C(77°F) |
| Cooling Time | 180 minutes from 25°C(77°F) to -40°C(-40°F) |
| Operating Voltage | 110VAC ±10%, 60Hz (Customizable Technical Specifications) |
| Rated Power | Approximately 1500W |
| Dimensions | 405mm (15.9") x 350mm (13.8") x 870mm (34.3") |
| Net Weight | Approximately 42 kg (92.6 lb) |
