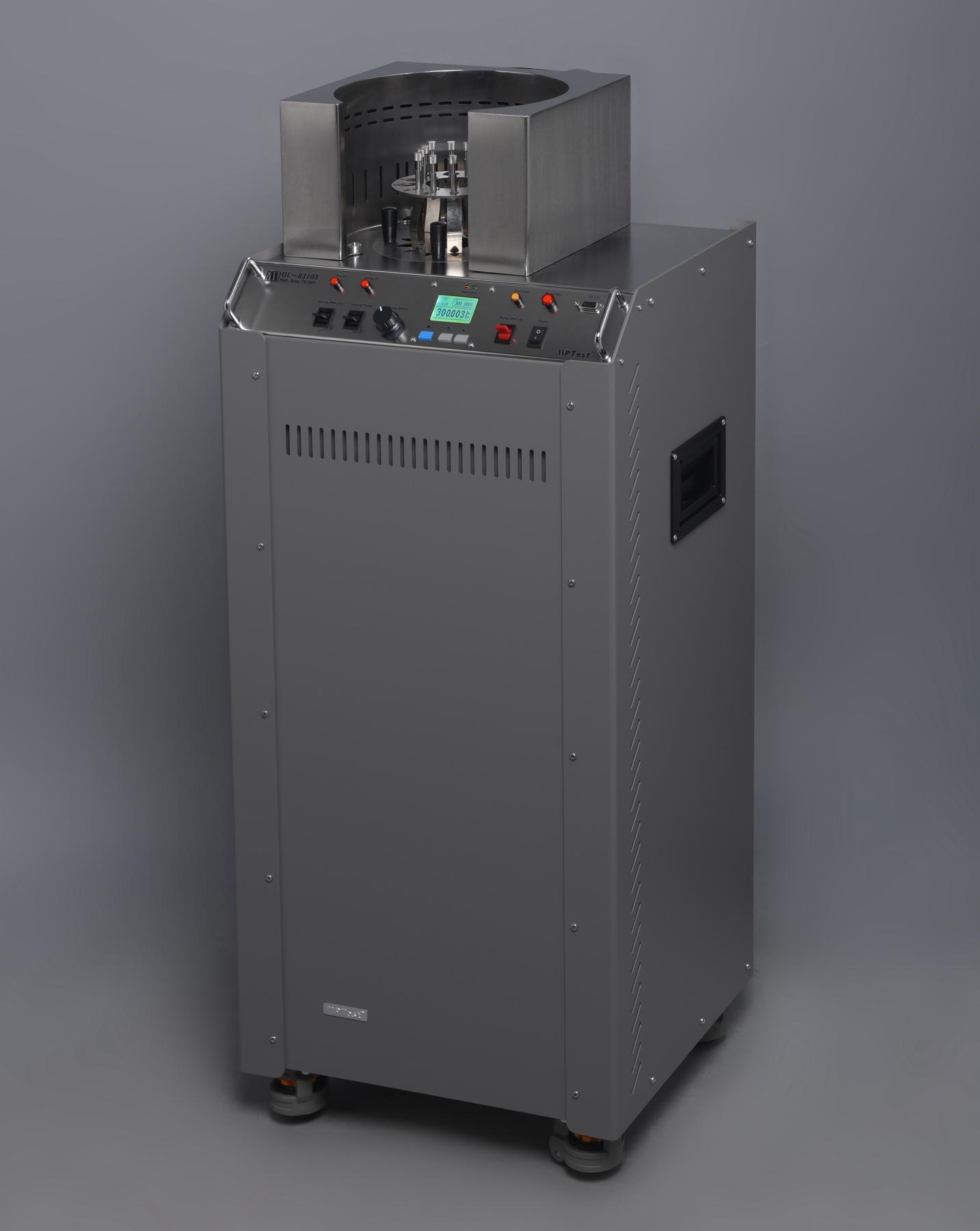

Oil Calibration Bath
The GL-8310S is a high-temperature oil bath designed for metrological verification in temperature laboratories, using silicone oil as the working medium. It features an aperture diameter of 138 mm (5.43 inches) and a bath depth of 510 mm (20.1 inches), making it particularly suitable for testing and calibrating long-stem thermometers in laboratory environments. Across the entire temperature range of 80°C to 300°C (176°F to 572°F), the bath achieves a temperature stability of ±0.005°C, providing reliable conditions for high-precision temperature calibration. Equipped with a rapid air-cooling system, it delivers efficient performance with high accuracy. The integration of MPtest's jet-stream agitation technology ensures low vibration and quiet operation, contributing to a tranquil laboratory environment.
Specifications
| Operating Temperature | Methyl Silicone Oil(50cst): 80 ℃ to 300 ℃ (176°F to 572°F) |
| Working Area | Diameter 138mm (5.4"), Depth 510mm (20.1") |
| Wetted Parts | 304 stainless steel |
| Liquid Volume | Approximately 15 liters (3.96 gal) |
| Stirring Method | Jet stirring, three-speed adjustable |
| Temperature Control Method | Fully digital PID control |
| Display Resolution | 0.001 ℃ |
| Temperature Stability | ±0.005 ℃ /10min at 100 ℃ (212°F) ±0.008 ℃ /10min at 300 ℃ (572°F) |
| Temperature Uniformity | ±0.01 ℃ at 100 ℃ (212°F) ±0.02 ℃ at 300 ℃ (572°F) |
| Heating Time | 60 minutes from 50°C(122°F) to 300°C(572°F) |
| Cooling Time | 60 minutes from 300°C(572°F) to 60°C(140°F) |
| Operating Voltage | 220VAC±10%, 60Hz (Customizable Technical Specifications) |
| Rated Power | Approximately 2900W |
| Dimensions | 405mm (15.9") x 350mm (17.1") x 870mm (41.7") |
| Net Weight | Approximately 35 kg (77.2 lb) |
