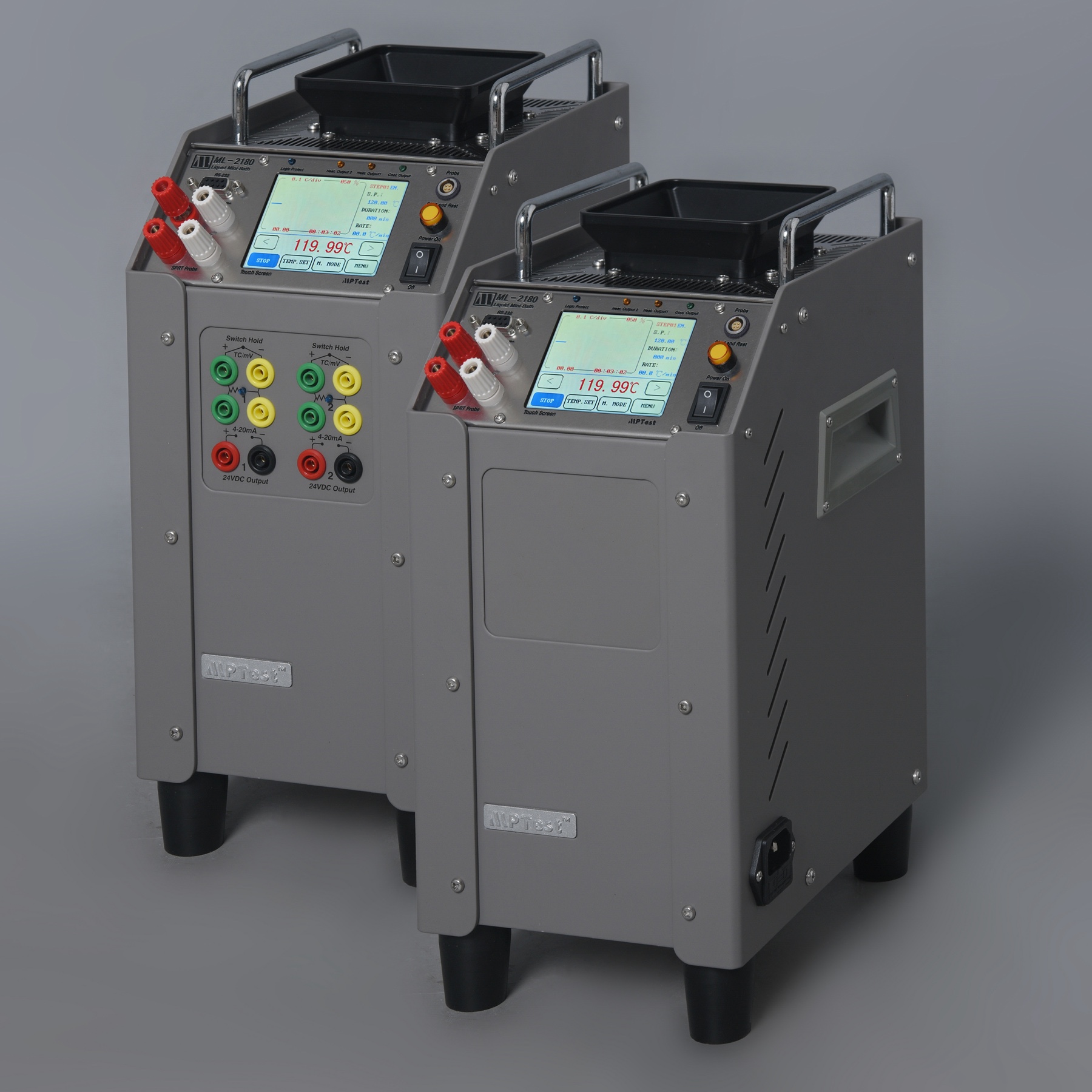

Mini Oil Temperature Calibration Bath
The ML-2180 miniature oil bath utilizes semiconductor-based refrigeration technology and is equipped with a magnetically-driven stirring system. This unit features an operating temperature range of -10°C to 155°C, with a bath diameter of 2.5 inches (63.5 mm) and a depth of 180 mm. The bath opening is fitted with an anti-splash rim, and the system achieves a temperature stability of ±0.01°C. Users have the option to configure the system with an inner flow guide sleeve and a thermometer calibration measurement module. Its compact design ensures excellent portability.
Specifications
| Operating Temperature | Methyl Silicone Oil(10cst): -10 ℃ to 155 ℃ (14°F to 311°F) |
| Working Area | Diameter 47mm (1.85"), Depth 180mm (7.1") |
| Wetted Parts | Aluminum and 304 stainless steel |
| Liquid Volume | Approximately 0.8 liters (0.2 gal) |
| Stirring Method | Magnetic Stirring |
| Temperature Control Method | Fully digital PID control |
| Display Resolution | 0.001 ℃ |
| Temperature Stability | ±0.01 ℃ /10min |
| Temperature Uniformity | ±0.02 ℃ |
| Heating Time | 20 minutes from 25°C(77°F) to 155°C(194°F) |
| Cooling Time | 30 minutes from 25°C(77°F) to -10°C(23°F) |
| Operating Voltage | 110VAC ±10%, 60Hz (Customizable Technical Specifications) |
| Rated Power | Approximately 300W |
| Dimensions | 170mm (6.7") x 230mm (9") x 350mm (13.8") |
| Net Weight | Approximately 13 kg (28.7 lb) |
