Desktop Large Volume Standard Resistor Thermostatic Bath

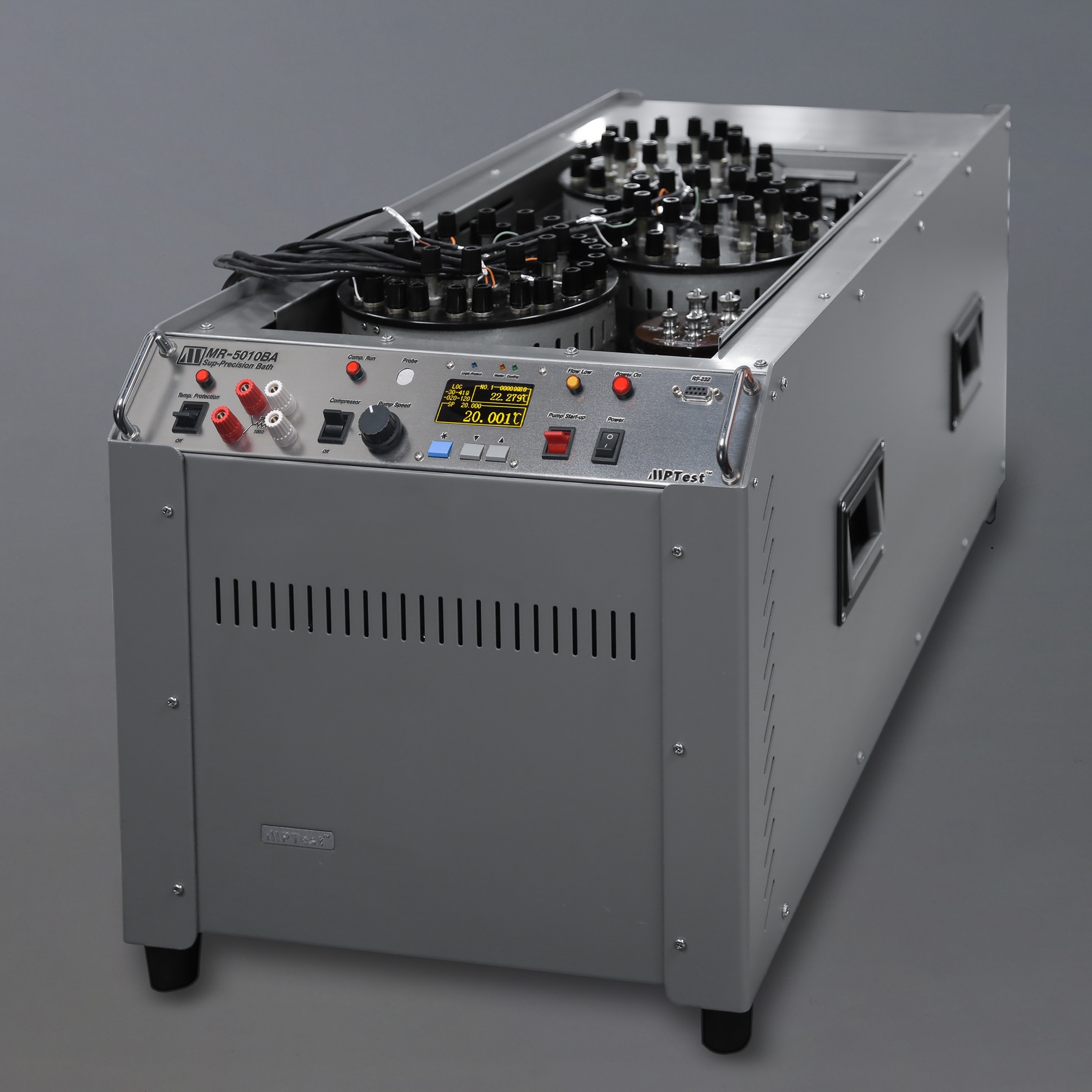

Model: MR-5010BA

The MR-5010BA is a precision, desktop, large-capacity standard resistor thermostatic oil bath, specifically designed for electrical metrology centers. Featuring a workspace measuring 550mm (21.6") in length, 300mm (11.8") in width, and 280mm (11") in depth, the unit offers a capacity of 60 liters. It utilizes jet-stream agitation temperature control technology, resulting in exceptionally low operational noise and vibration, and achieves a temperature stability of ±0.001°C per 10 minutes. The bath is equipped with an internally adjustable lifting platform, facilitating the thermostatic conditioning and long-term storage of large-volume resistors, Hamon resistors, and standard cells used in electrical metrology.

  • Specifications

  • Operating Temperature White Oil(Marcol 52): 5 ℃ to 60 ℃ (41°F to 140°F)
    Working Area Length 550mm (21.6"), Width 300mm (11.8"), Depth 280mm
    Wetted Parts 304 stainless steel
    Liquid Volume Approximately 60 liters (16 gal)
    Stirring Method Jet stirring, three-speed adjustable
    Temperature Control Method Fully digital PID control
    Display Resolution 0.001 ℃
    Temperature Stability ±0.001 ℃ /10min at 20 ℃ (68°F)
    Temperature Uniformity ±0.002.5 ℃ at 20 ℃ (68°F)
    Heating Time 120 minutes from 20°C(68°F) to 30°C(86°F)
    Cooling Time 150 minutes from 30°C(86°F) to 20°C(68°F)
    Operating Voltage 110VAC ±10%, 60Hz (Customizable Technical Specifications)
    Rated Power Approximately 1200W
    Dimensions 400mm (15.7") x 900mm (35.4") x 420mm (16.5")
    Net Weight Approximately 60 kg (132.3 lb)
