Precision High-Capacity Standard Resistor Thermostatic Bath

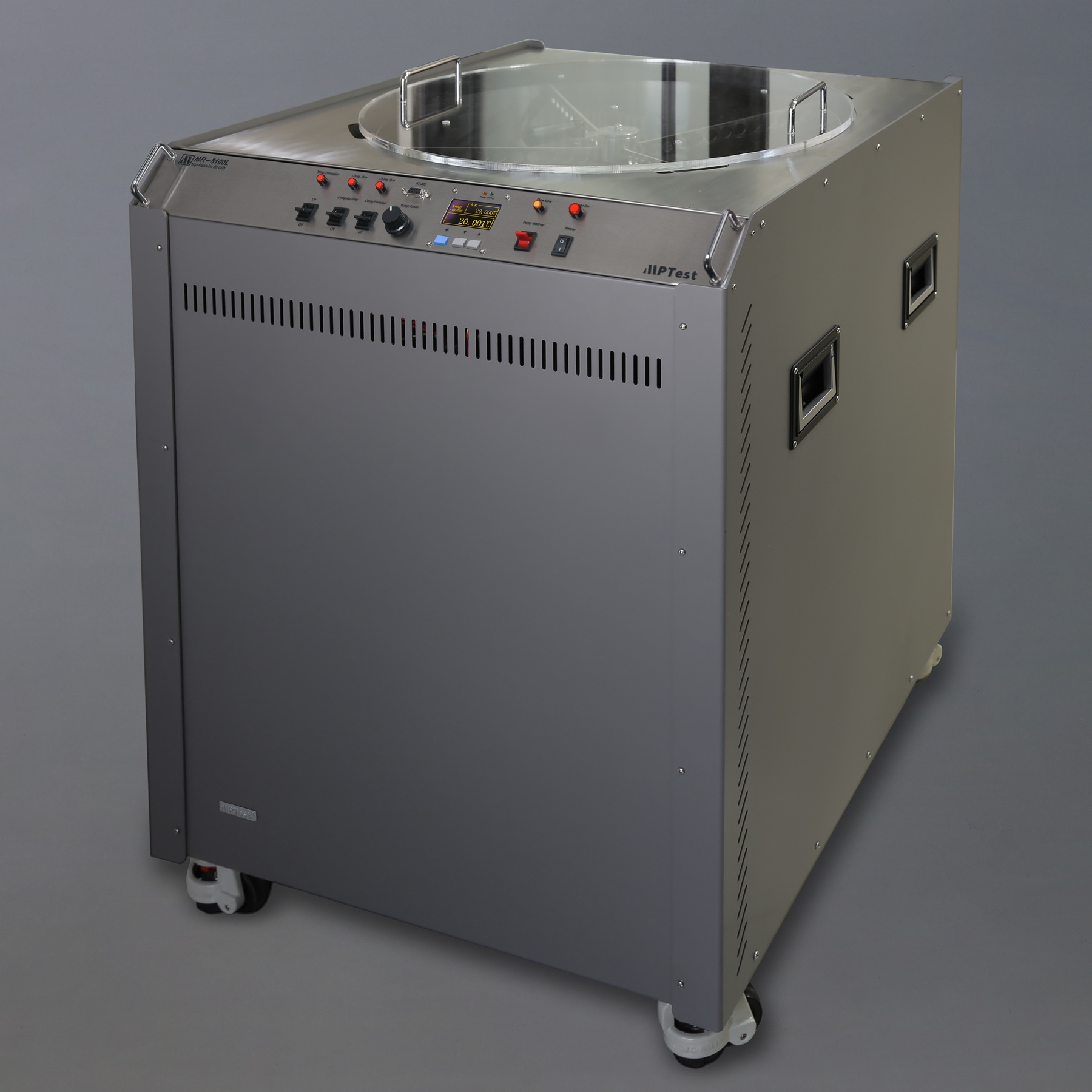

The MR-5100L Precision High-Capacity Standard Resistor Thermostatic Bath is specifically designed for high-level electrical metrology centers. Featuring a workspace of 550mm in diameter and 380mm in depth, this unit offers a capacity of 120 liters. Utilizing jet-flow agitation temperature control technology, it operates with minimal noise and vibration while achieving a temperature stability of ±0.001°C per 10 minutes. The interior is equipped with an adjustable lifting platform, facilitating the thermostatic maintenance and long-term storage of large-sized resistors, Hamon resistors, and standard cells used in electrical metrology.
Specifications
| Operating Temperature | White Oil(Marcol 52): 5 ℃ to 60 ℃ (41°F to 140°F) |
| Workspace(Working Area) | Diameter 550mm (21.6"), Depth 380mm (15") |
| Wetted Parts | 304 stainless steel |
| Liquid Volume | Approximately 120 liters (31.7 gal) |
| Stirring Method | Jet stirring, three-speed adjustable |
| Temperature Control Method | Fully digital PID control |
| Display Resolution | 0.001 ℃ |
| Temperature Stability | ±0.001 ℃ /10min at 20 ℃ (68°F) |
| Temperature Uniformity | ±0.002 ℃ at 20 ℃ (68°F) |
| Heating Time | 20 minutes from 20°C(68°F) to 30°C(86°F) |
| Cooling Time | 30 minutes from 30°C(86°F) to 20°C(68°F) |
| Operating Voltage | 220V AC ±10%, 60Hz (Customizable Technical Specifications) |
| Rated Power | Approximately 3500W |
| Dimensions | 680mm (26.8") x 740mm (29.1") x 900mm (35.4") |
| Net Weight | Approximately 100 kg (220.5 lb) |
