Precision Ultra-High Capacity Standard Resistor Thermostatic Bath

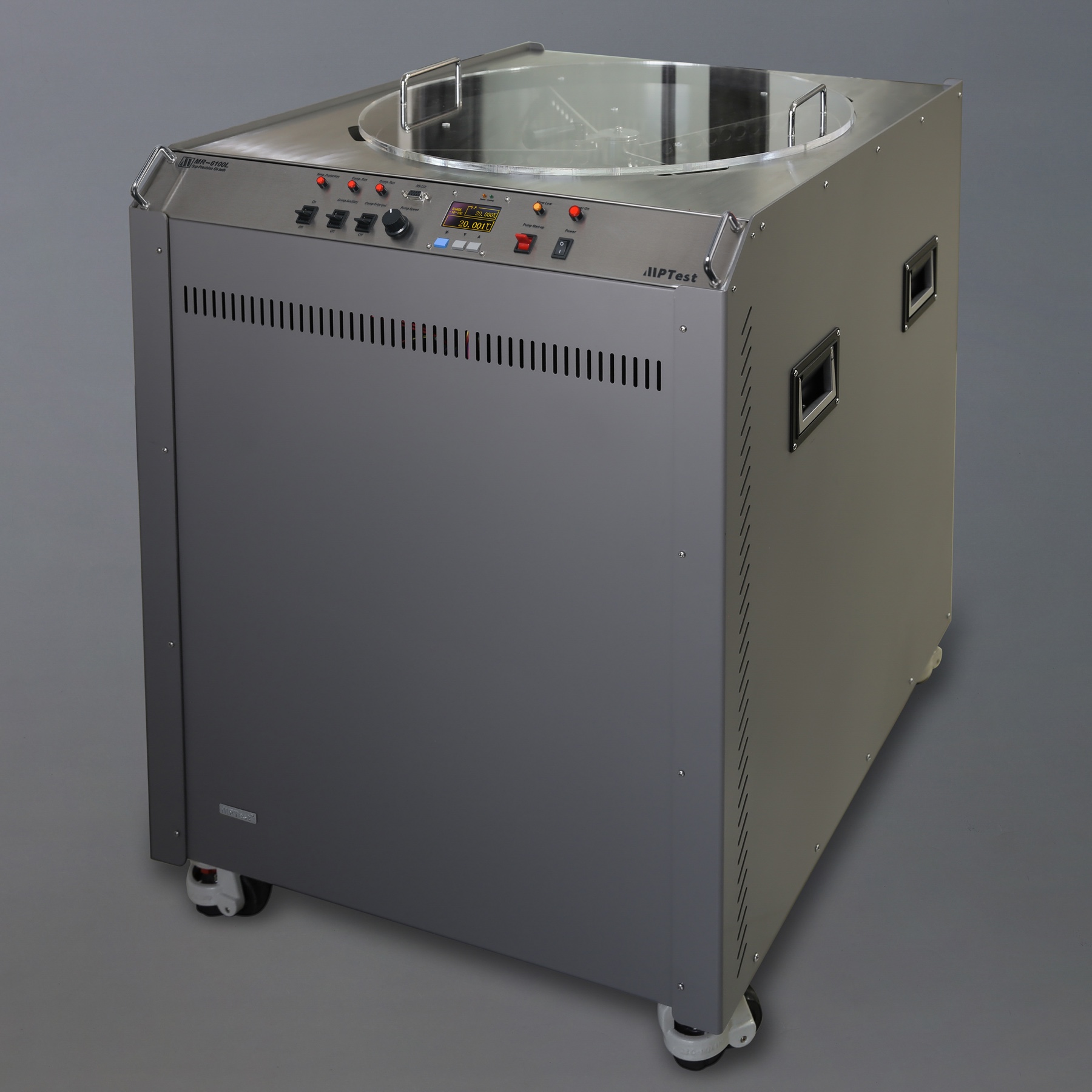

The MR-6100L Precision Ultra-High Capacity Standard Resistor Thermostatic Bath is specifically designed for high-level electrical metrology centers. Featuring a workspace diameter of 670 mm and a depth of 400 mm, this unit provides a capacity of 180 liters. Utilizing jet-flow agitation temperature control technology, it operates with minimal noise and vibration while achieving temperature stability of ±0.001°C per 10 minutes. The internally designed vertically adjustable two-tier plane platform allows infrequently used standard resistors to be stored on the lower level for long-term preservation in a constant-temperature environment.
Specifications
| Operating Temperature | White Oil(Marcol 52): 5 ℃ to 60 ℃ (41°F to 140°F) |
| Workspace(Working Area) | Diameter 670mm (26.3"), Depth 400mm (15.7") |
| Wetted Parts | 304 stainless steel |
| Liquid Volume | Approximately 180 liters (48 gal) |
| Stirring Method | Jet stirring, three-speed adjustable |
| Temperature Control Method | Fully digital PID control |
| Display Resolution | 0.001 ℃ |
| Temperature Stability | ±0.001 ℃ /10min at 20 ℃ (68°F) |
| Temperature Uniformity | ±0.002 ℃ at 20 ℃ (68°F) |
| Heating Time | 20 minutes from 20°C(68°F) to 30°C(86°F) |
| Cooling Time | 30 minutes from 30°C(86°F) to 20°C(68°F) |
| Operating Voltage | 220V AC ±10%, 60Hz (Customizable Technical Specifications) |
| Rated Power | Approximately 4500W |
| Dimensions | 800mm (31.5") x 860mm (33.9") x 900mm (35.4") |
| Net Weight | Approximately 120 kg (264.6 lb) |
