Economical Low-Temperature Dry-Well

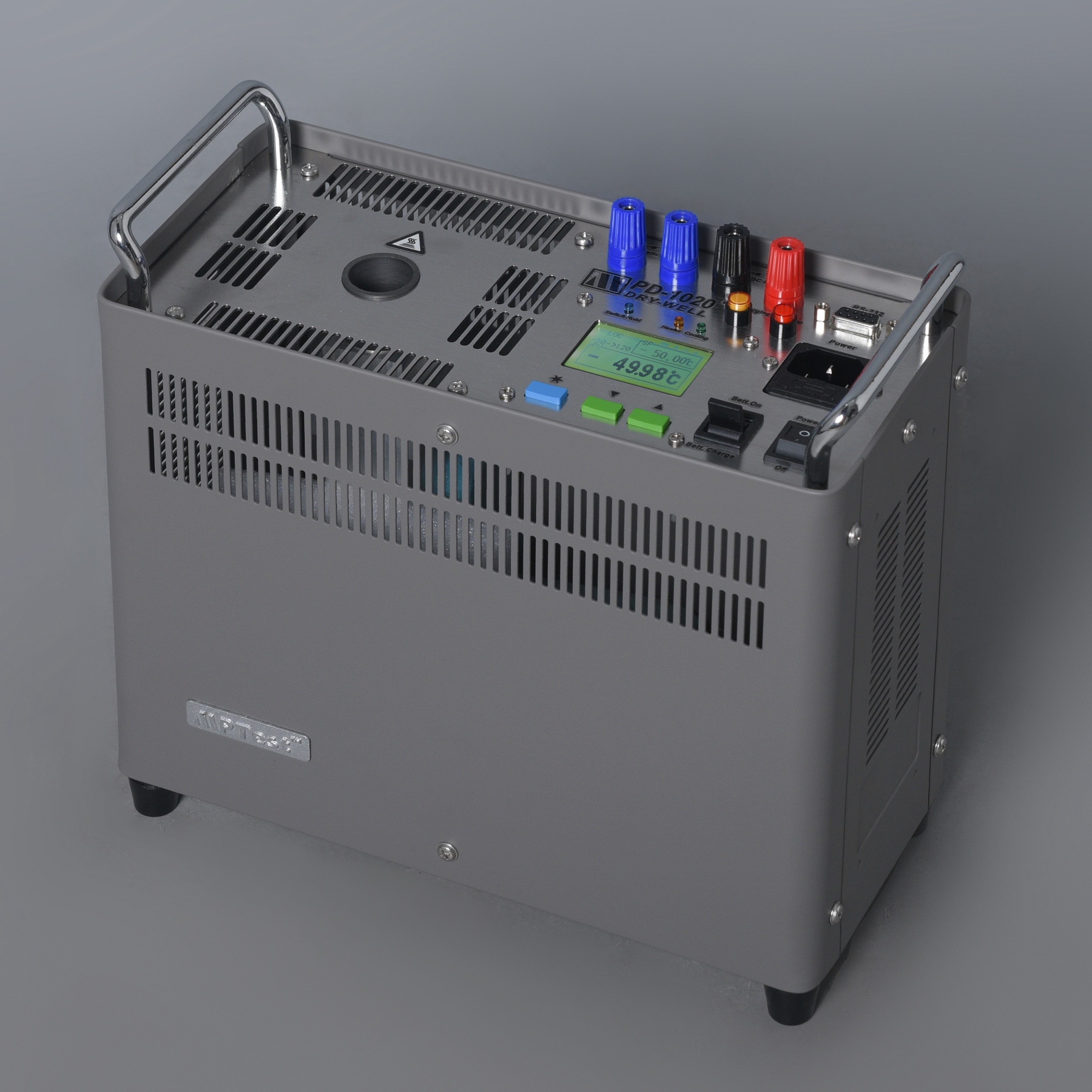

The PD-1020 is a compact, portable, and economical dry-well temperature calibrator designed for low-temperature applications. The unit features a cylindrical heating block and heat transfer sleeves, with a well diameter of 20 mm (0.79 inches). It can be powered by a 12V lead-acid battery, making it particularly suitable for scenarios without AC power supply. The calibrator comes standard with a carrying case and has a sales history of over 20 years, demonstrating proven reliability. It offers a temperature range from -20°C (-4°F) to 110°C (230°F), with a temperature stability of ±0.02°C per 10 minutes and a well depth of 160 mm (6.30 inches). Customized heat transfer sleeves can be machined to accommodate specific thermometer diameters.
Specifications
| Range (at 23°C ambient) | -20 ℃ to 110 ℃ (-4°F to 230°F) |
| Working Area | Tapered Casing: Diameter 16mm (0.63"), Depth 138mm (5.4") |
| Casing Material | Aluminum |
| Temperature Control Method | Fully digital PID control |
| Display Resolution | 0.01 ℃ |
| Display accuracy | ±0.2 ℃ full range |
| Temperature Stability | ±0.02 ℃ /10min full range |
| Axial uniformity | ±0.04°C at –20°C(-4°F) ±0.02°C at 0°C(32°F) ±0.05°C at 100°C(212°F) |
| Heating Time | 8 minutes from 25°C(77°F) to 110°C(230°F) |
| Cooling Time | 20 minutes from 25°C(77°F) to -20°C(-4°F) |
| Stabilization Time | 5~8 minutes |
| Operating Voltage | 110VAC±10%, 60Hz or 12V, 7AH(Lead-Acid Battery) |
| Rated Power | Approximately 120W |
| Dimensions | 268mm (10.6") x 125mm (4.9") x 256mm (10.1") |
| Net Weight | Approximately 7.5 kg (16.5 lb) |
