General Temperature Dry- Well

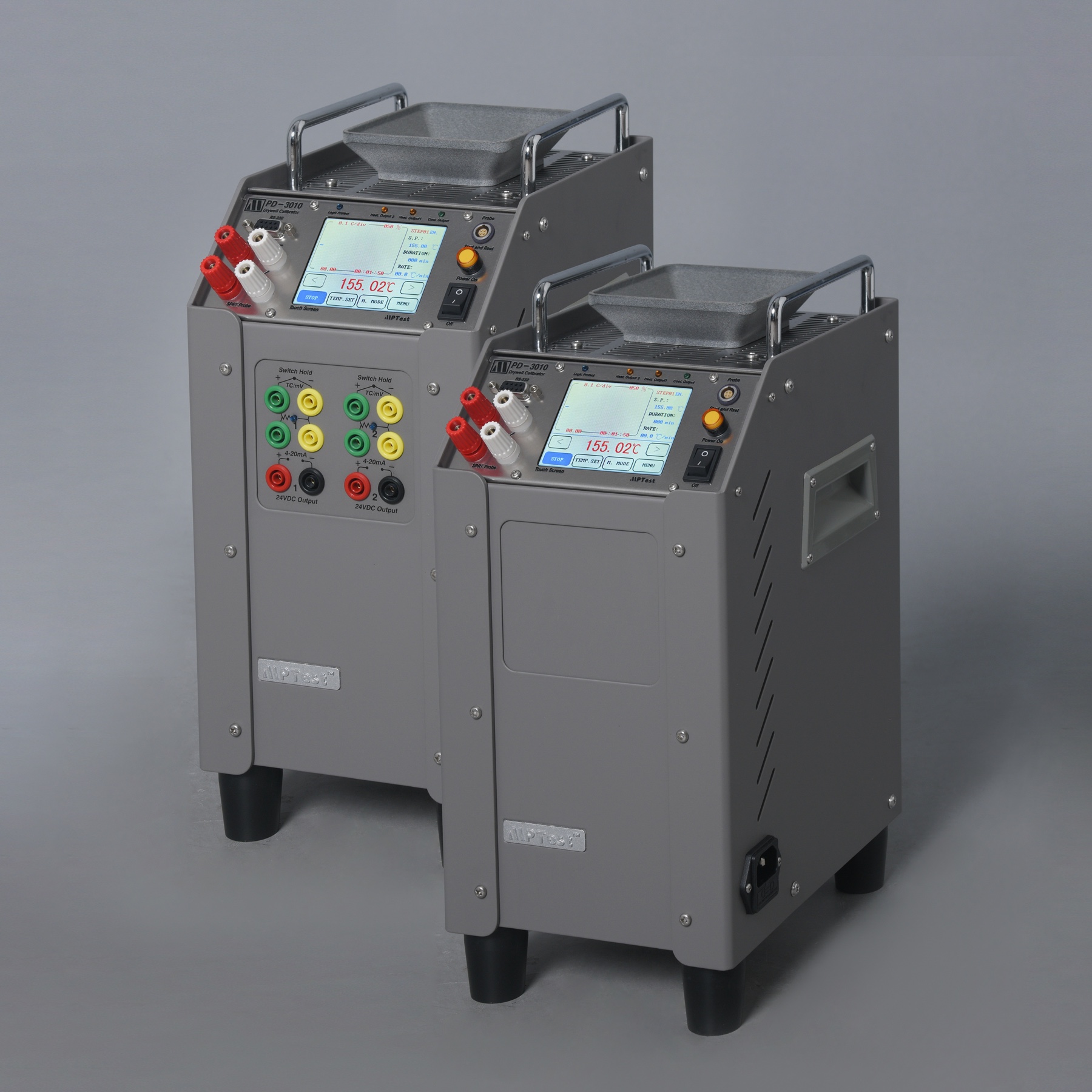

The PD-3010 is a versatile dry-well temperature calibrator. It utilizes semiconductor (Peltier) cooling technology to achieve a temperature range from -25 °C to 155 °C. The unit features a cylindrical heating block with a diameter of 30 mm (1.18 inches) and a well depth of 200 mm (7.87 inches). A variety of heat transfer sleeves are available for user selection. It provides a temperature stability of ±0.02 °C per 10 minutes, with parameters displayed on a color touchscreen that also supports multi-segment programmable temperature control. Additionally, a dual-channel electrical measurement module is available as an optional accessory. The calibrator comes complete with a protective carrying case.
Specifications
| Range (at 23°C ambient) | -15 ℃ to 155 ℃ (5°F to 311°F) |
| Working Area | Diameter 30mm (1.2"), Depth 200mm (7.9") |
| Casing Material | Aluminum |
| Temperature Control Method | Fully digital PID control |
| Display Resolution | 0.01 ℃ |
| Display accuracy | ±0.3 ℃ full range |
| Temperature Stability | ±0.02 ℃ /10min full range |
| Inter-hole ΔT | ≤ 0.02 ℃ |
| Axial uniformity | ±0.03°C at -10°C(14°F) ±0.02°C at 0°C(32°F) ±0.1°C at 150°C(302°F) |
| Heating Time | 25 minutes from 25°C(77°F) to 100°C(212°F) |
| Cooling Time | 15 minutes from 25°C(77°F) to 0°C(32°F) |
| Stabilization Time | 8~10 minutes |
| Operating Voltage | 110VAC±10%, 60Hz (Customizable Technical Specifications) |
| Rated Power | Approximately 160W |
| Dimensions | 170mm (6.7") x 230mm (9.1") x 350mm (13.8") |
| Net Weight | Approximately 12 kg (26.5 lb) |
