Low-Temperature Dry- Well

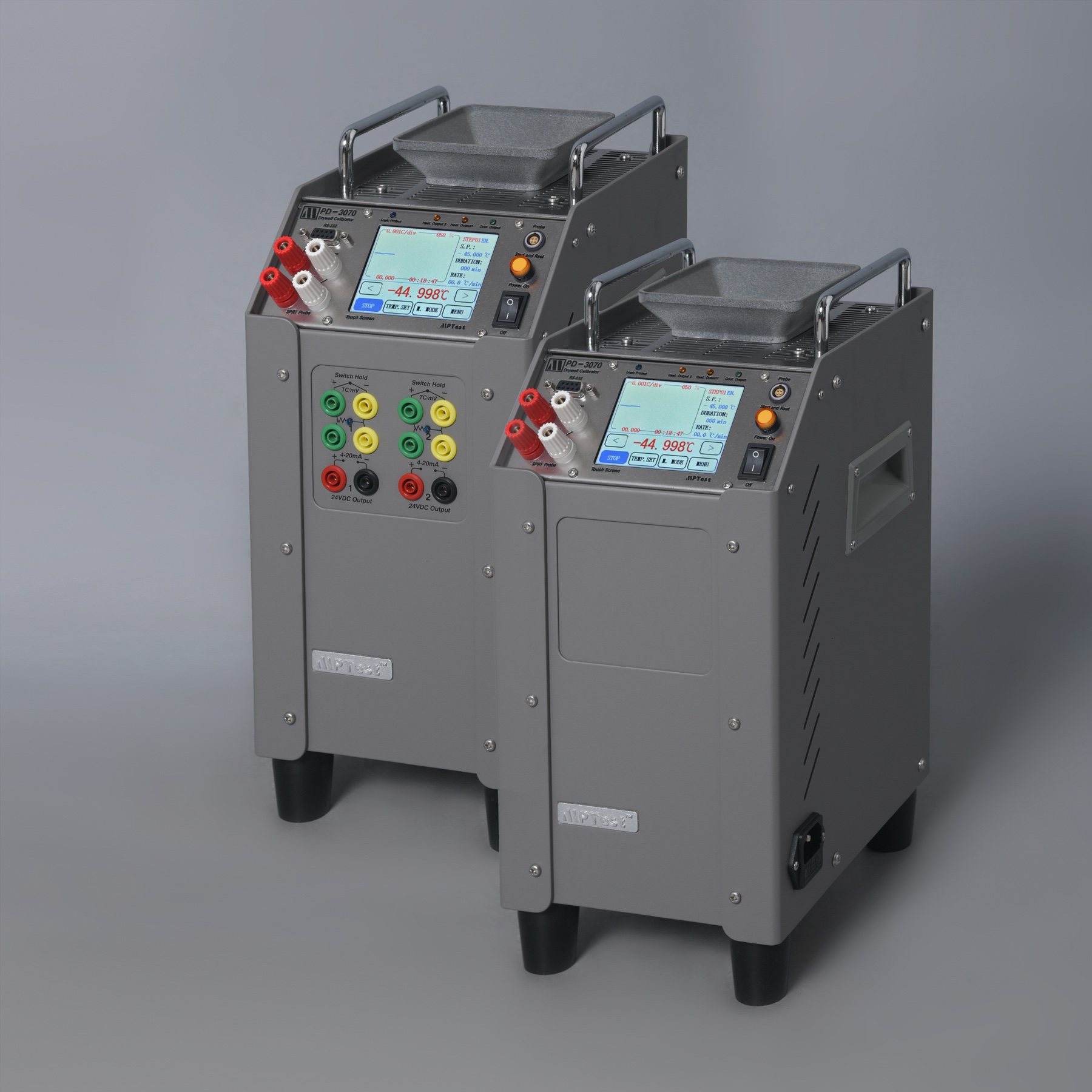

Model PD-3070 is a low-temperature dry-well temperature calibrator utilizing two-stage semiconductor (Peltier) cooling technology, achieving a temperature range from -45°C to 125°C. The unit features a heating block with a large-end diameter of 30 mm (1.18 inches) and conical heat-transfer sleeves, providing a well depth of 200 mm (7.87 inches). It maintains temperature stability of ±0.02°C per 10 minutes, with all parameters displayed on a color touchscreen that supports multi-segment programmable temperature control. An optional dual-channel electrical parameter measurement module is available. The calibrator comes standard with a protective transportation case.
Specifications
| Range (at 23°C ambient) | -45 ℃ to 125 ℃ (-49°F to 257°F) |
| Working Area | Conical Structure: Diameter 30mm (1.2"), Depth 200mm (7.9") |
| Casing Material | Aluminum |
| Temperature Control Method | Fully digital PID control |
| Display Resolution | 0.01 ℃ |
| Display accuracy | ±0.3 ℃ full range |
| Temperature Stability | ±0.02 ℃ /10min full range |
| Inter-hole ΔT | ≤ 0.02 ℃ |
| Axial uniformity | ±0.05°C at -45°C(-49°F) ±0.02°C at 0°C(32°F) ±0.1°C at 100°C(302°F) |
| Heating Time | 20 minutes from 25°C(77°F) to 100°C(212°F) |
| Cooling Time | 25 minutes from 25°C(77°F) to -40°C(-40°F) |
| Stabilization Time | 8~10 minutes |
| Operating Voltage | 110VAC±10%, 60Hz (Customizable Technical Specifications) |
| Rated Power | Approximately 360W |
| Dimensions | 170mm (6.7") x 230mm (9.1") x 350mm (13.8") |
| Net Weight | Approximately 13 kg (28.7 lb) |
