Large Volume Medium-Temperature Dry- Well

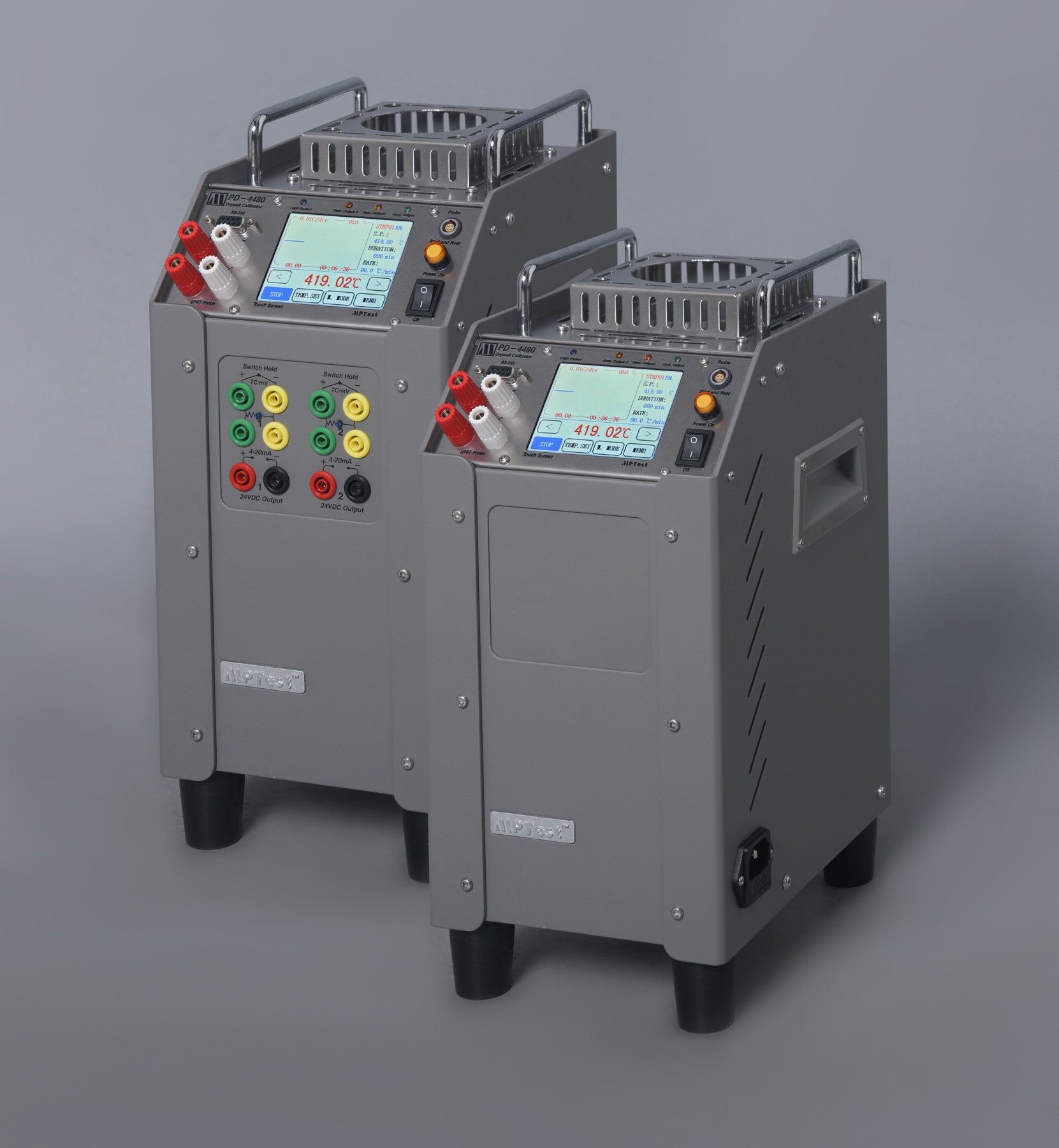

The PD-4480 is a large-aperture medium-temperature dry-well calibrator utilizing electric heating rods, achieving a temperature range of 50°C (122°F) to 450°C (842°F). Featuring a cylindrical well design with a diameter of 63.5 mm (2.5 inches) and a depth of 200 mm (7.87 inches), it offers interchangeable heat-transfer sleeves for versatile applications. The calibrator delivers a temperature stability of ±0.02°C per 10 minutes, with parameters displayed on a color touchscreen supporting multi-segment programmable temperature control. Additionally, a dual-channel electrical measurement module is available as an optional accessory. The unit includes a protective carrying case as standard.
Specifications
| Range (at 23°C ambient) | 50 ℃ to 450 ℃ (122°F to 842°F) |
| Working Area | Diameter 63mm (2.5"), Depth 200mm (7.9") |
| Casing Material | Aluminum |
| Temperature Control Method | Fully digital PID control |
| Display Resolution | 0.01 ℃ |
| Display accuracy | ±0.3 ℃ full range |
| Temperature Stability | ±0.02 ℃ /10min full range |
| Inter-hole ΔT | ≤ 0.15 ℃ at 400°C(752°F) |
| Axial uniformity | ±0.1°C at 100°C(212°F) ±0.2°C at 400°C(752°F) |
| Heating Time | 60 minutes from 25°C(77°F) to 400°C(752°F) |
| Cooling Time | 120 minutes from 400°C(752°F) to 100°C(212°F) |
| Stabilization Time | 10~15 minutes |
| Operating Voltage | 110VAC±10%, 60Hz (Customizable Technical Specifications) |
| Rated Power | Approximately 600W |
| Dimensions | 170mm (6.7") x 230mm (9.1") x 350mm (13.8") |
| Net Weight | Approximately 13 kg (28.7 lb) |
