Portable Target Black Body Constant Temperature Source

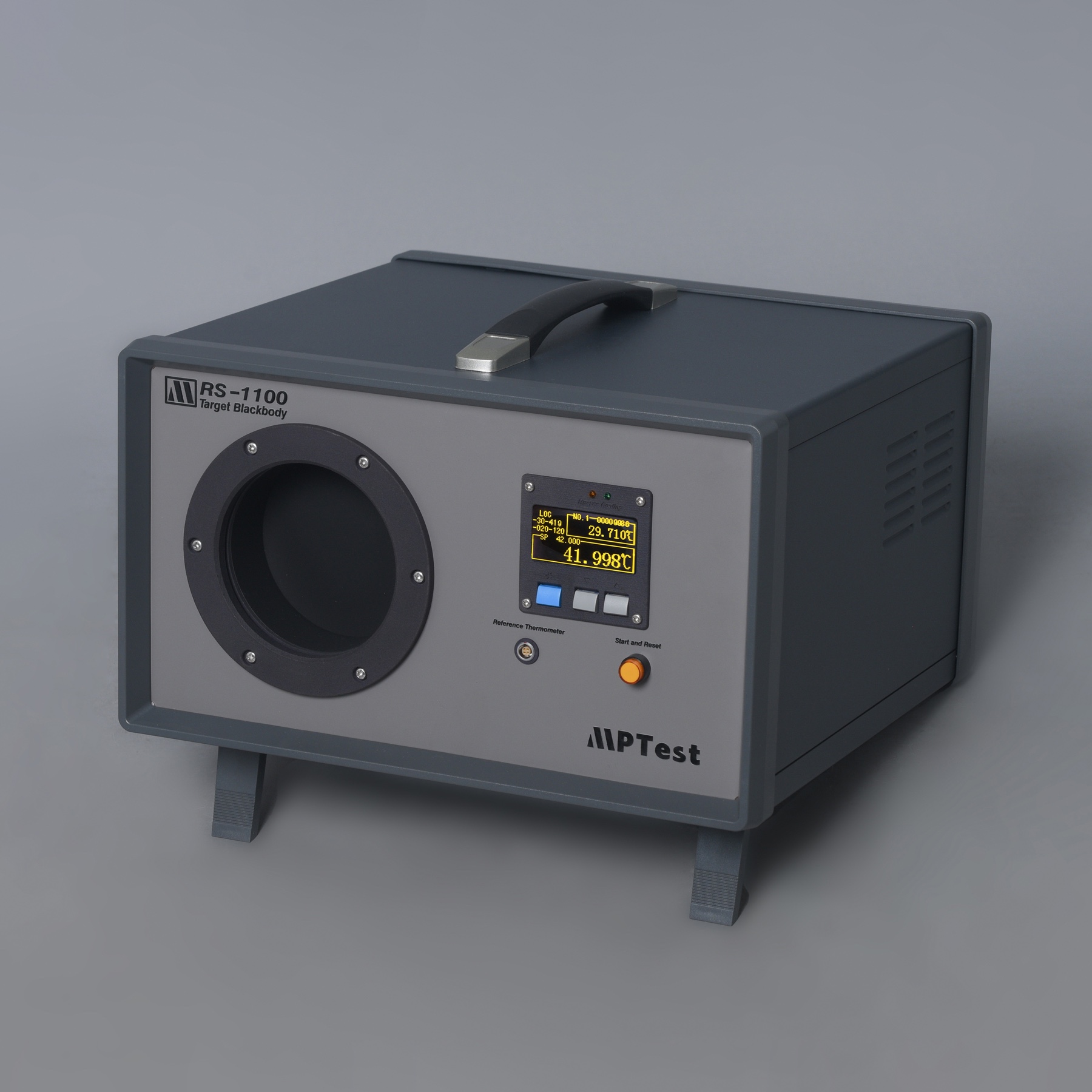

The RS-1100 large-aperture flat-plate blackbody radiation source features a 100mm diameter target area. Utilizing liquid circulation temperature control, it achieves an emissivity greater than 0.98 within an operational temperature range of 15 to 50°C. This device can be used for temperature uniformity testing and calibration of infrared visual cameras. It is equipped with a 4mm diameter test aperture for temperature calibration and a 4-wire reference thermometer input port to ensure traceable temperature measurement.
Specifications
| Range (at 23°C ambient) | Antifreeze: 15 ℃ to 50 ℃ (59°F to 122°F) |
| Working Area | Diameter 100mm (3.9"), Depth 47mm (1.9") |
| Tank Material | Copper |
| Temperature Control Method | Fully digital PID control |
| Display Resolution | 0.001 ℃ |
| Display accuracy | ±0.05 ℃ |
| Temperature Stability | ±0.005 ℃ /10min full range |
| Stabilization Time | 10~15 minutes |
| Effective Emissivity | 0.98 |
| Heating Time | 15 minutes from 25°C(77°F) to 45°C(113°F) |
| Cooling Time | 30 minutes from 45°C(122°F) to 35°C(95°F) |
| Operating Voltage | 110~240VAC±10%, 50~60Hz |
| Rated Power | Approximately 110W |
| Dimensions | 330mm (13") x 360mm (14.2") x 235mm (9.3") |
| Net Weight | Approximately 8.5 kg (18.7 lb) |
