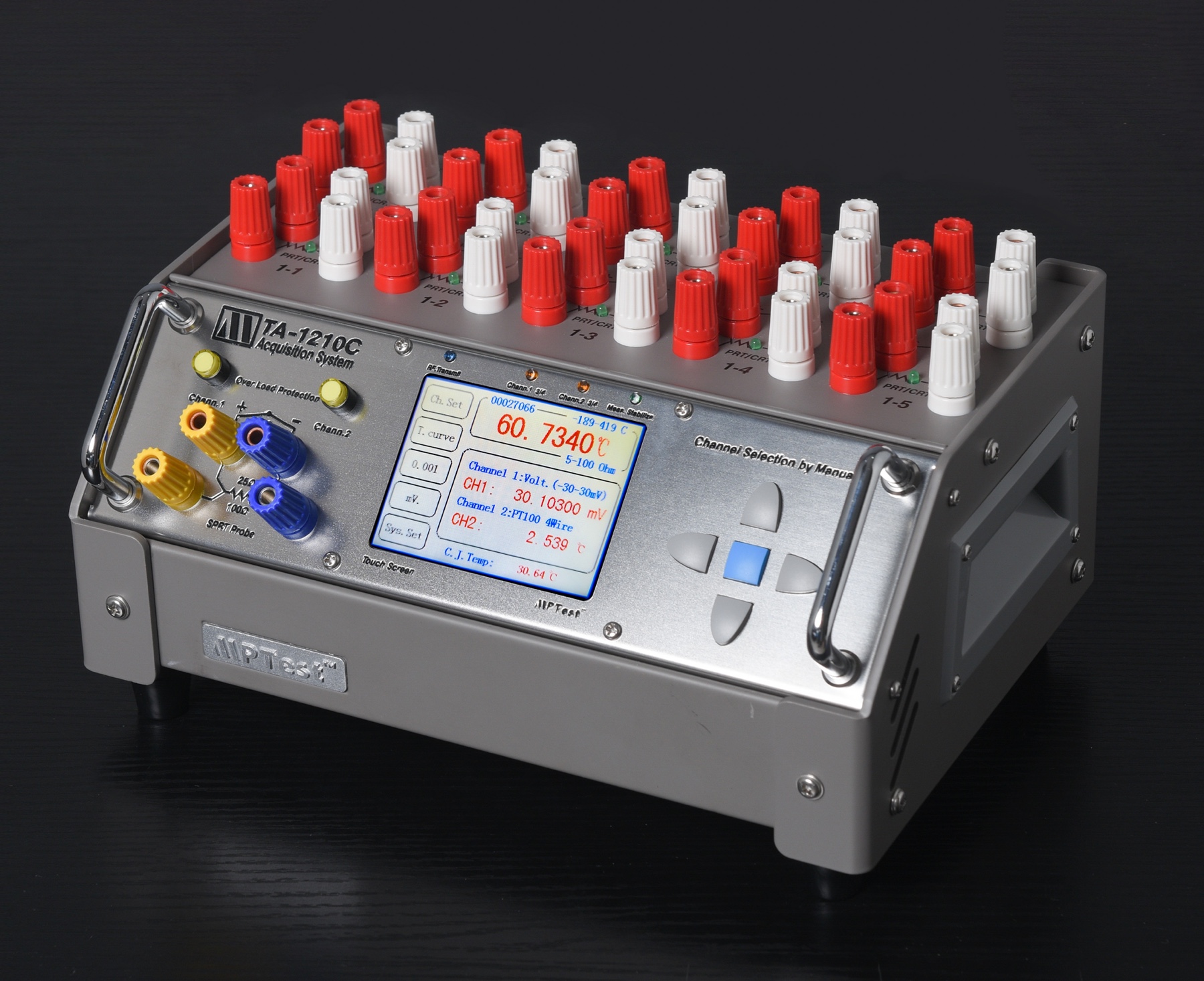

Integrated Desktop Temperature Data Collector
This temperature measurement and data acquisition device features 10 test channels and one reference temperature channel. It offers high 8-digit display resolution, curve display functionality, a built-in thermostatic unit, and a color touchscreen human-machine interface. The device supports 2-wire, 3-wire, and 4-wire resistance temperature detectors (RTDs) and thermocouples across its test channels, with multiple thermocouple cold junction compensation methods. It enables automated testing via RS-232 computer connectivity. Application: Automated acquisition and testing of industrial thermometers.
Specifications
| Display | 3.5-inch Touch Screen | |
| Resolution | 8 Digits | |
| V DC | Range | -100 mV to 100 mV |
| Max. resolution | 10 nV | |
| Accuracy | Standard Channel Range: -30mV~30 mV |
0.003 + 0.001(% measurement + % of range) |
| Measured Channel (2*5 Ch) Range: -100mV~100mV |
0.005 + 0.002(% measurement + % of range) | |
| Resistance | Measuring Mode | Two/Three/Four-Wire Measurement |
| Range | 5Ω to 4000Ω | |
| Max. resolution | 10 uΩ | |
| Measure Current | 1 mA /0.1mA (Constant Current Commutation) | |
| Accuracy | Standard Channel Range: 5Ω~100Ω |
0.0015 + 0.0005 (% measurement + % of range) |
| Measured Channel (2*5 Ch) Range: 5Ω~400Ω |
0.0015 + 0.001 (% measurement + % of | |
| Measured Channel (2*5 Ch) Range: 5Ω~4000Ω |
0.005 + 0.002 (% measurement + % of range) | |
| A DC | Range | 2 mA to 30 mA |
| Max. resolution | 100 nA | |
| Accuracy | Measured Channel (2*5 Ch) | 0.01 + 0.005(% measurement + % of range) |
| EMF | Measured Channel (2*5 Ch) | ±0.2uV |
| General Specifications | ||
| Warm-up Time | 30min | |
| Operating Voltage | 110VAC ±10%, 60Hz (Customizable Technical Specifications) | |
| Rated Power | Approximately 30W | |
| Dimensions | 260mm (10.2") x 190mm (7.5") x 130mm (5.1") | |
| Net Weight | Approximately 6 kg (13.2 lb) |
