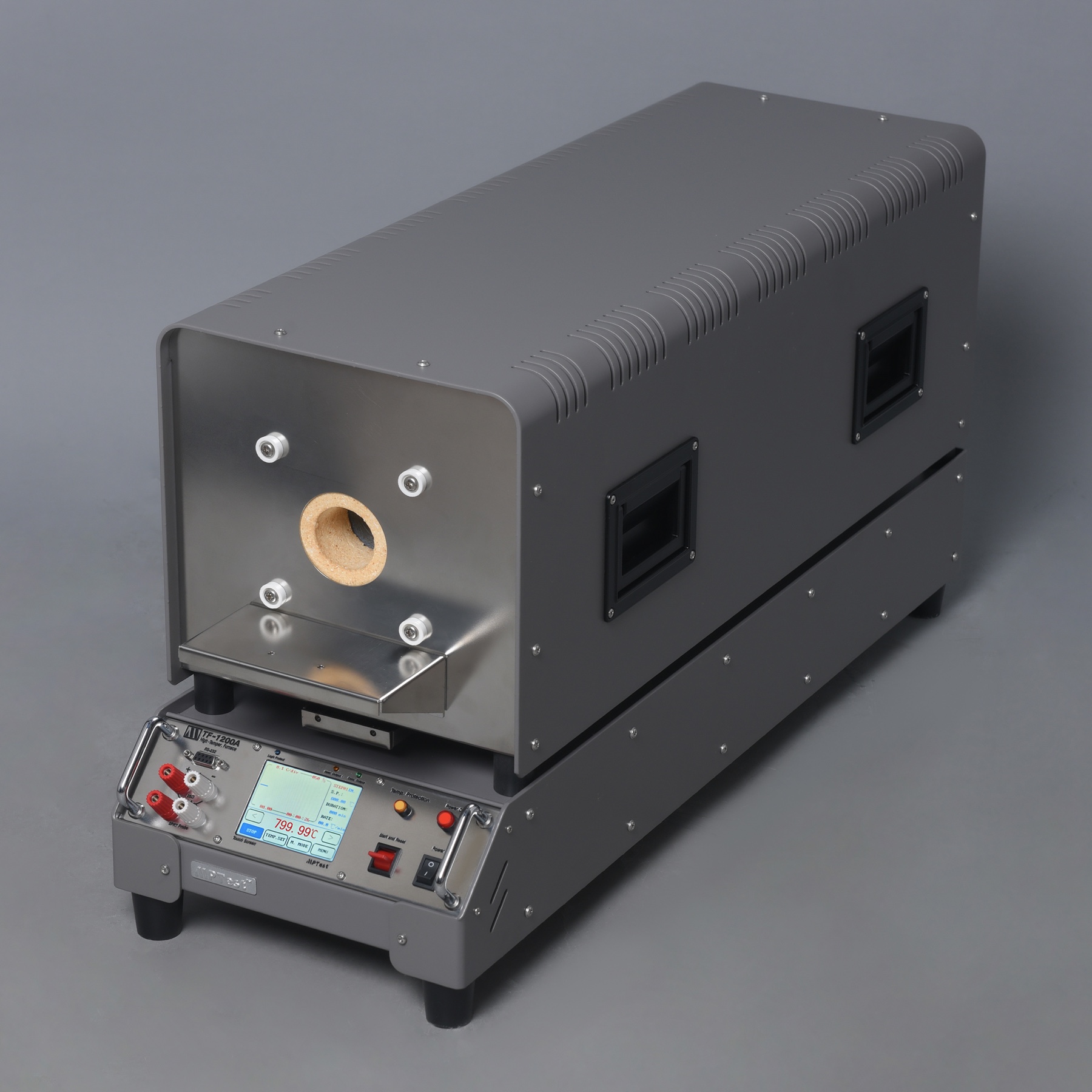

Base Metals Thermocouple Calibration Furnace
The TF-1200A thermocouple calibration furnace is specifically designed for the verification of base metal thermocouples. It employs three-zone temperature control technology to flexibly adjust the uniformity of the axial temperature field. The system reaches a maximum operating temperature of 1200°C, with a temperature stability of ±0.2°C per minute. It features a furnace tube with a diameter of 40 mm (1.57 inches) and a length of 600 mm (23.62 inches). The system is equipped with an extendable long-arm thermocouple holder and uses an independent Type S thermocouple for precise temperature control. The touch-enabled color display supports calibration curve visualization functionality.
Specifications
| Operating Temperature | 300 ℃ to 1000 ℃ (572°F to 1832°F) |
| Working Area | Tube Furnace: 40mm(1.6") in Diameter, 600mm(23.6") in Lengt |
| Temperature Control Method | Multi-zone Temperature Control |
| Display Resolution | 0.01 ℃ |
| Temperature Stability | ±0.2 ℃ /10min at 1000 ℃ (2192°F) |
| Set-point accuracy | ±3 ℃ |
| Radial uniformity | ±0.3 ℃ (14 mm from geometry central point) |
| Axial uniformity | ±0.5 ℃ (±30 mm axial length from geometry central poin) |
| Heating Time | 45 minutes from 25°C(77°F) to 1000°C(2192°F) |
| Cooling Time | 180 minutes from1000°C(2192°F) to 300°C(572°F) |
| Operating Voltage | 220VAC±10%, 60Hz (Customizable Technical Specifications) |
| Rated Power | Approximately 3200W |
| Dimensions | 255 mm (10") x 811mm (31.9") x 385mm (15.2") |
| Net Weight | Approximately 25 kg (55.1 lb) |
