Economical Temperature Calibration Bath

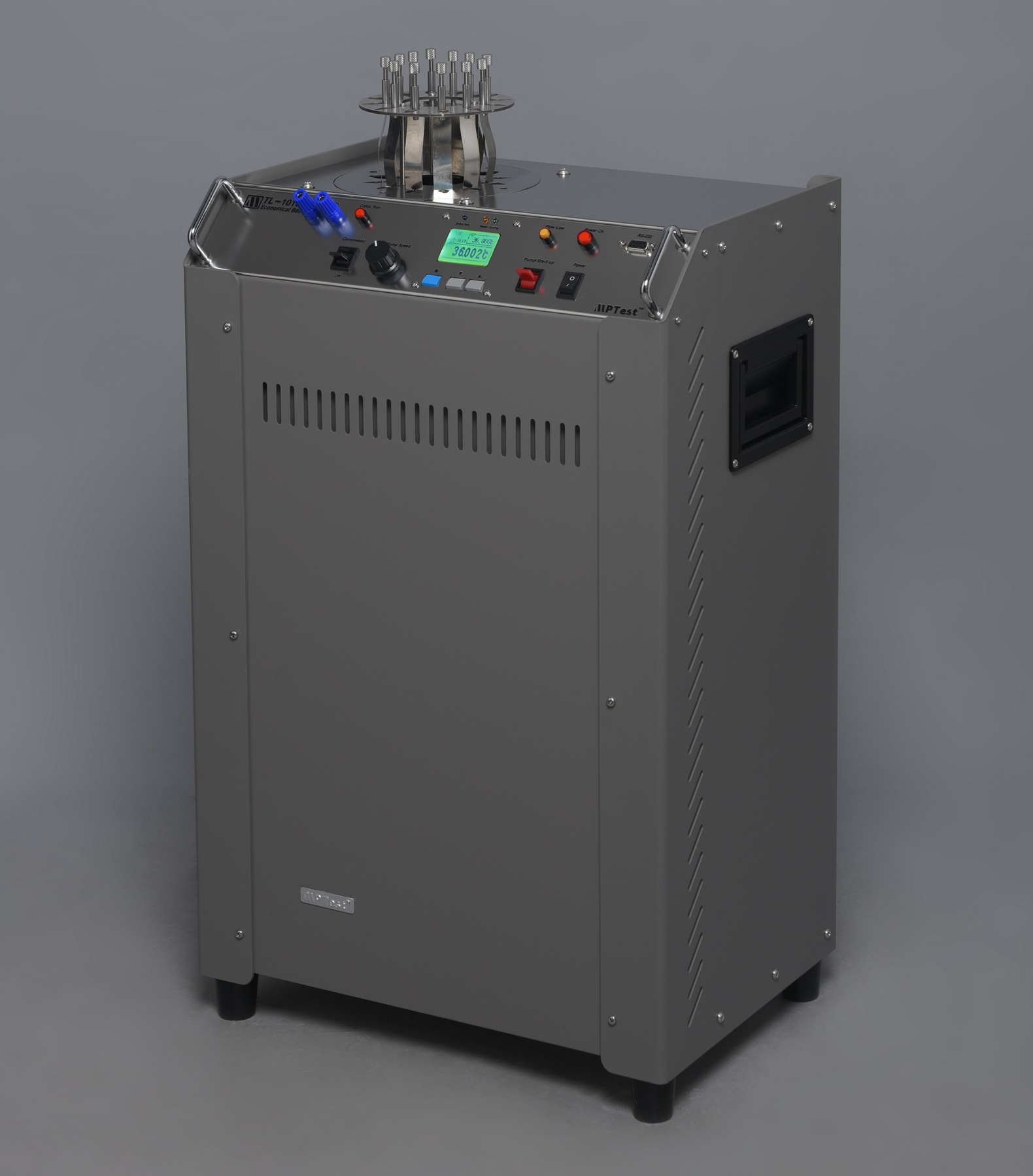

TL-1010N is a compact, portable, and cost-effective universal constant temperature bath specifically designed for mobile metrology applications. This unit can be easily transported in a small sedan, featuring a workspace with a diameter of 138 mm (5.4 inches) and a depth of 400 mm (15.7 inches), while delivering high-precision temperature control performance. It incorporates MPTest's proprietary jet stirring technology, ensuring quiet operation, low vibration, and energy efficiency, with a temperature stability of ±0.002°C. The unit is equipped with MPTest's unique three-button LCD temperature controller for simple and practical operation. The use of antifreeze as the medium is recommended, enabling an operating temperature range from -10°C (14°F) to 100°C (212°F). The included transit case not only protects the instrument during transportation but also serves as a temporary bench stand for instrument placement.
Specifications
| Operating Temperature | Antifreeze: -10 ℃ to 100 ℃ (14°F to 212°F) |
| Working Area | Diameter 138mm (5.4"), Depth 400mm (15.7") |
| Wetted Parts | 304 stainless steel |
| Liquid Volume | Approximately 10 liters (2.64 gal) |
| Stirring Method | Jet stirring, three-speed adjustable |
| Temperature Control Method | Fully digital PID control |
| Display Resolution | 0.001 ℃ |
| Temperature Stability | ±0.002 ℃ /10min at 0 ℃ (32°F) |
| ±0.005 | ℃ /10min at 90 ℃ (194°F) |
| Temperature Uniformity | ±0.004 ℃ at 0 ℃ (32°F) |
| ±0.010 | ℃ at 90 ℃ (194°F) |
| Heating Time | 40 minutes from 25°C(77°F) to 90°C(194°F) |
| Cooling Time | 150 minutes from 25°C(77°F) to 0°C(32°F) |
| Operating Voltage | 110VAC ±10%, 60Hz (Customizable Technical Specifications) |
| Rated Power | Approximately 1200W |
| Dimensions | 408mm (16.1") x 280mm (11") x 558mm (22") |
| Net Weight | Approximately 33 kg (72.7 lb) |
