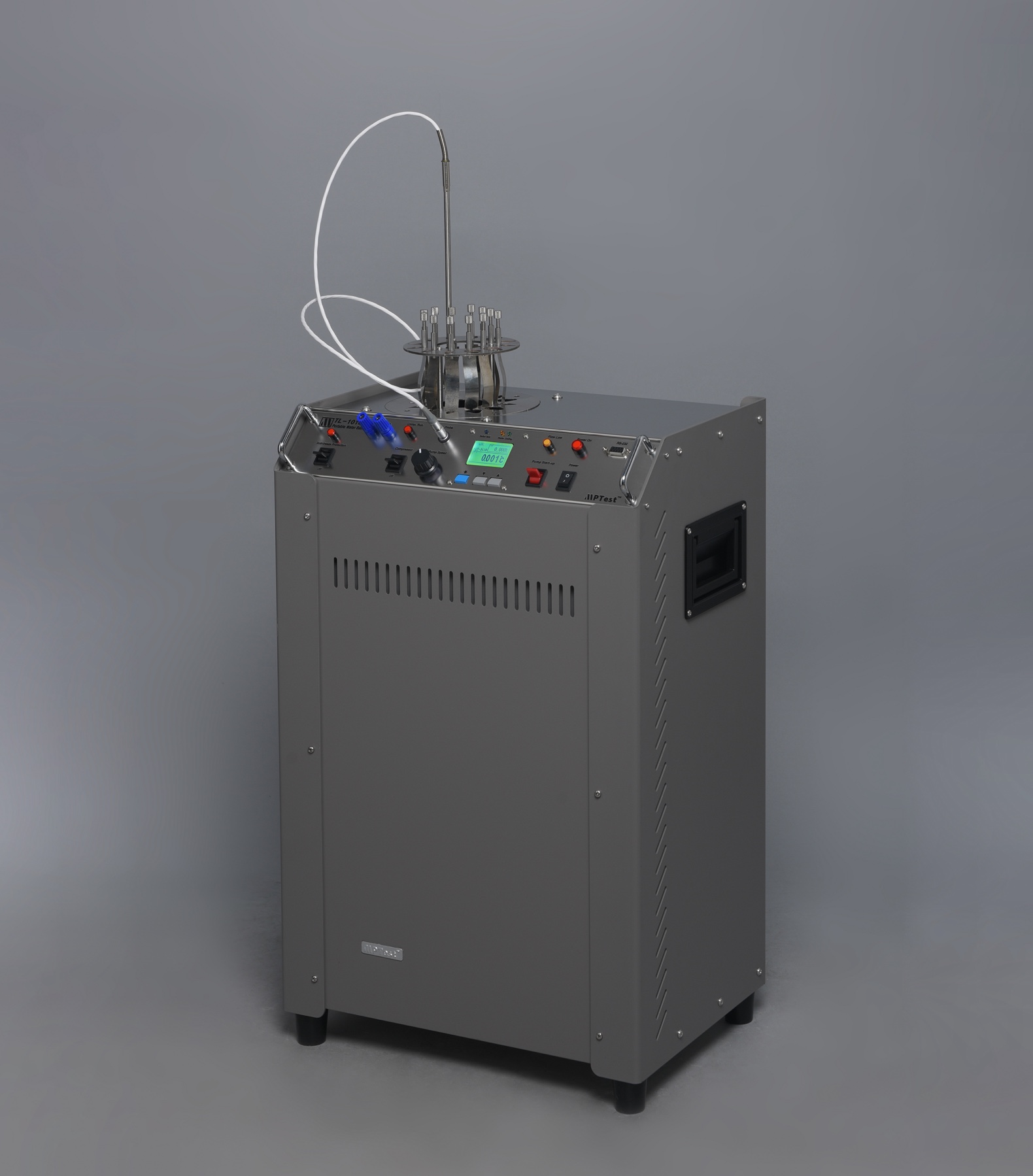

Portable Temperature Bath with Triple-Point Bottle Holder

Model: TL-1010S

In addition to inheriting all the technical features of the TL-1010N, the TL-1010S features an increased tank depth of 480 mm (18.9 inches). Beyond functioning as a universal temperature bath, it is equipped with a triple-point bottle suspension frame for the freezing, storage, and realization of water triple-point cells and gallium-point cells. The unit incorporates an external temperature probe to ensure reliable freezing and stable preservation of water triple-point bottles. It also includes a protective function to prevent damage to the triple-point bottles caused by accidental supercooling during extended storage. A transport case is provided, which also serves as a temporary bench stand for the instrument.

  • Specifications

  • Operating Temperature Antifreeze: -10 ℃ to 100 ℃ (14°F to 212°F)
    Working Area Diameter 138mm (5.4"), Depth 480mm (18.9")
    Wetted Parts 304 stainless steel
    Liquid Volume Approximately 12 liters (3.17 gal)
    Stirring Method Jet stirring, three-speed adjustable
    Temperature Control Method Fully digital PID control
    Display Resolution 0.001 ℃
    Temperature Stability ±0.002 ℃ /10min at 0 ℃ (32°F)
    ±0.005 ℃ /10min at 90 ℃ (194°F)
    Temperature Uniformity ±0.002.5 ℃ at 0 ℃ (32°F)
    ±0.010 ℃ at 90 ℃ (194°F)
    Heating Time 40 minutes from 25°C(77°F) to 90°C(194°F)
    Cooling Time 150 minutes from 25°C(77°F) to 0°C(32°F)
    Operating Voltage 110VAC ±10%, 60Hz (Customizable Technical Specifications)
    Rated Power Approximately 1200W
    Dimensions 408mm (16.1") x 280mm (11") x 635mm (25")
    Net Weight Approximately 35 kg (77.2 lb)
