Mini Bath With High Stability

Model: TL-1105

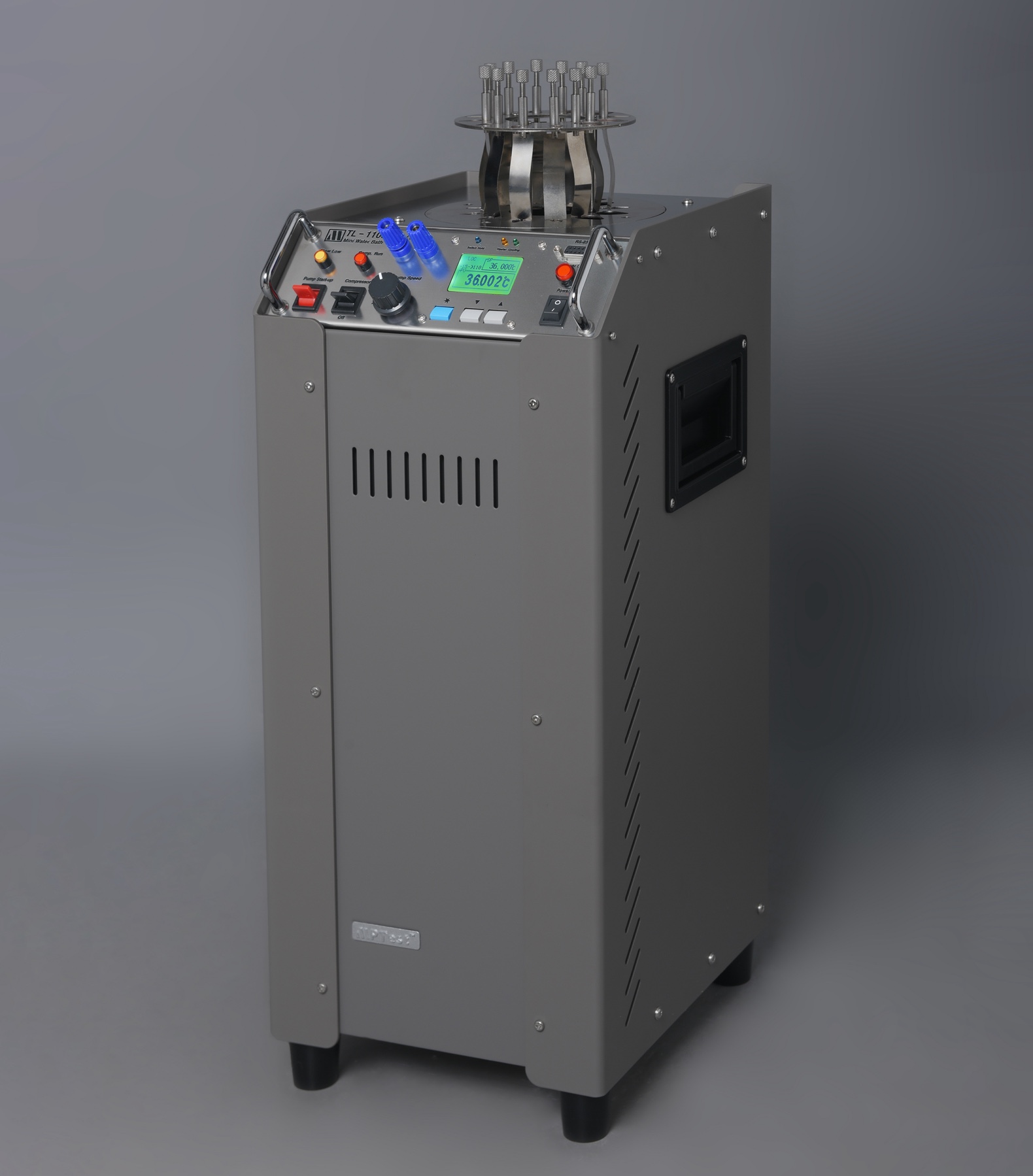

This is a more compactly designed constant temperature bath, weighing approximately 19.5 kg (43 lbs), with a temperature range of -10°C (14°F) to 102°C (215.6°F). It is recommended to use antifreeze for operation. The bath features an inner diameter of 138 mm (5.43 inches) and a depth of 265 mm (10.43 inches), achieving a temperature stability of ±0.003°C per 10 minutes. Designed for mobile metrology applications, it is lightweight enough for one person to easily transport and deploy at work sites. The bath utilizes MPtest's jet-stream mixing technology to achieve miniaturization while maintaining low vibration and quiet operation, making it particularly suitable for the calibration of short-stem thermometers. It also includes an instrument transport case that doubles as a temporary bench for field use.

  • Specifications

  • Operating Temperature Antifreeze: -10 ℃ to 100 ℃ (14°F to 212°F)
    Working Area Diameter 138mm (5.4"), Depth 265mm (10.4")
    Wetted Parts 304 stainless steel
    Liquid Volume Approximately 7 liters (1.85 gal)
    Stirring Method Jet stirring, three-speed adjustable
    Temperature Control Method Fully digital PID control
    Display Resolution 0.001 ℃
    Temperature Stability ±0.003 ℃ /10min at 0 ℃ (32°F)
    ±0.005 ℃ /10min at 90 ℃ (194°F)
    Temperature Uniformity ±0.004 ℃ at 0 ℃ (32°F)
    ±0.010 ℃ at 90 ℃ (194°F)
    Heating Time 60 minutes from 25°C(77°F) to 90°C(194°F)
    Cooling Time 90 minutes from 25°C(77°F) to 0°C(32°F)
    Operating Voltage 110VAC ±10%, 60Hz (Customizable Technical Specifications)
    Rated Power Approximately 800W
    Dimensions 228mm (9") x 258mm (10.2") x 520mm (20.5")
    Net Weight Approximately 19.5 kg (43 lb)
