Fast-Cooled Oil Temperature Calibration Bath

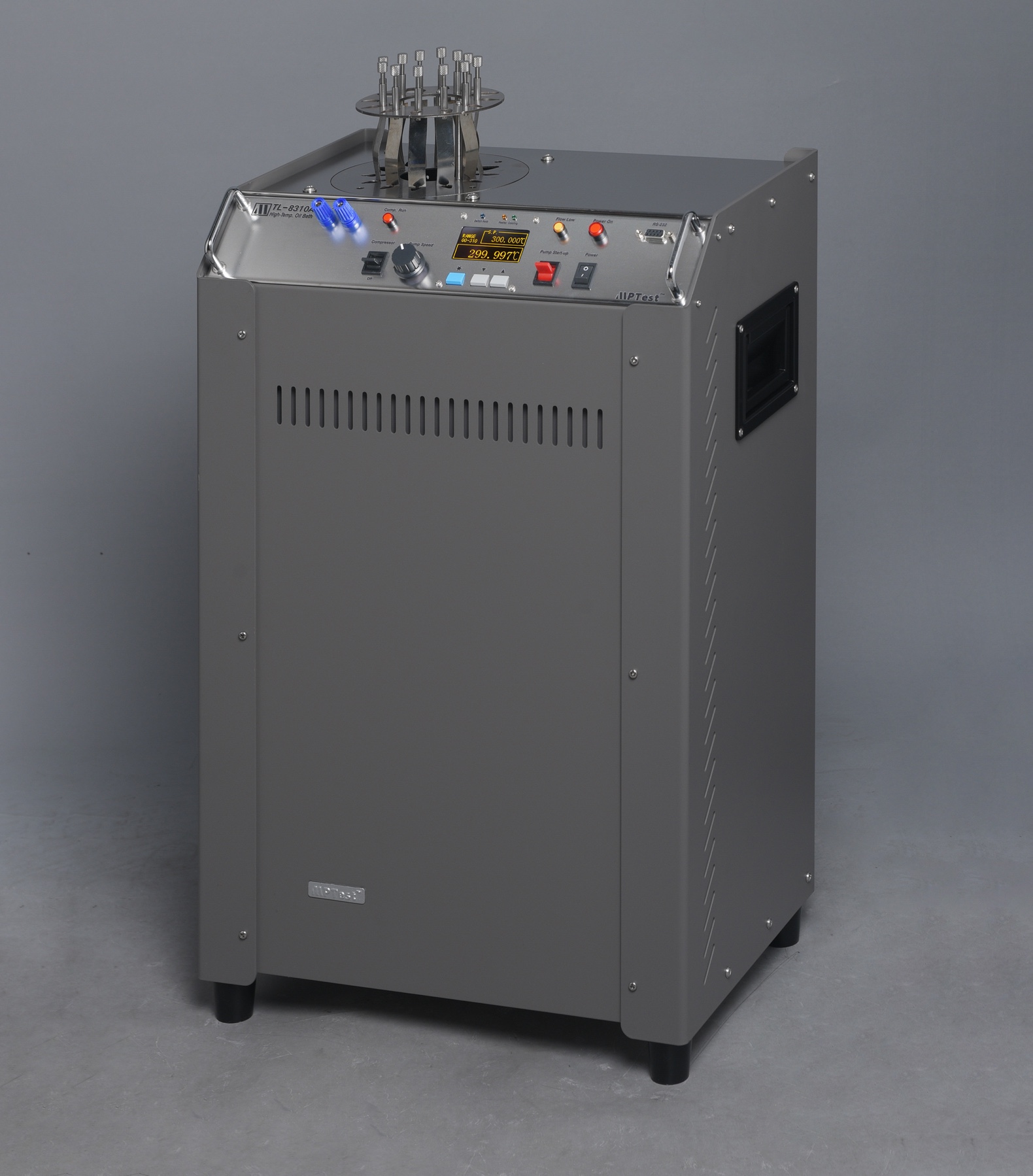

The TL-8310A is a portable thermostatic oil bath designed for mobile metrology applications. It operates over a temperature range of 50°C to 300°C (122°F to 572°F) and delivers temperature stability of ±0.010°C per 10-minute period. The bath features a workspace depth of 380 mm (14.96 inches), with silicone oil recommended as the working fluid. Equipped with a high-capacity air-cooling system for rapid cooldown, the unit incorporates a low-fume design and supports an optional exhaust fan to minimize vapor emissions in the working environment. A transport case is provided, which also serves as a temporary bench stand for field operations.
Specifications
| Operating Temperature | Methyl Silicone Oil(50cst): 80 ℃ to 300 ℃ (176°F to 572°F) |
| Working Area | Diameter 125mm (4.9"), Depth 380mm (15") |
| Wetted Parts | 304 stainless steel |
| Liquid Volume | Approximately 10 liters (2.64 gal) |
| Stirring Method | Jet stirring, three-speed adjustable |
| Temperature Control Method | Fully digital PID control |
| Display Resolution | 0.001 ℃ |
| Temperature Stability | ±0.003 ℃ /10min at 100 ℃ (212°F) ±0.007 ℃ /10min at 300 ℃ (572°F) |
| Temperature Uniformity | ±0.005 ℃ at 100 ℃ (212°F) ±0.010 ℃ at 300 ℃ (572°F) |
| Heating Time | 120 minutes from 50°C(122°F) to 300°C(572°F) |
| Cooling Time | 90 minutes from 300°C(572°F) to 60°C(140°F) |
| Operating Voltage | 110VAC ±10%, 60Hz (Customizable Technical Specifications) |
| Rated Power | Approximately 1500W |
| Dimensions | 408mm (16.1") x 280mm (11") x 635mm (25") |
| Net Weight | Approximately 35 kg (77.2 lb) |
