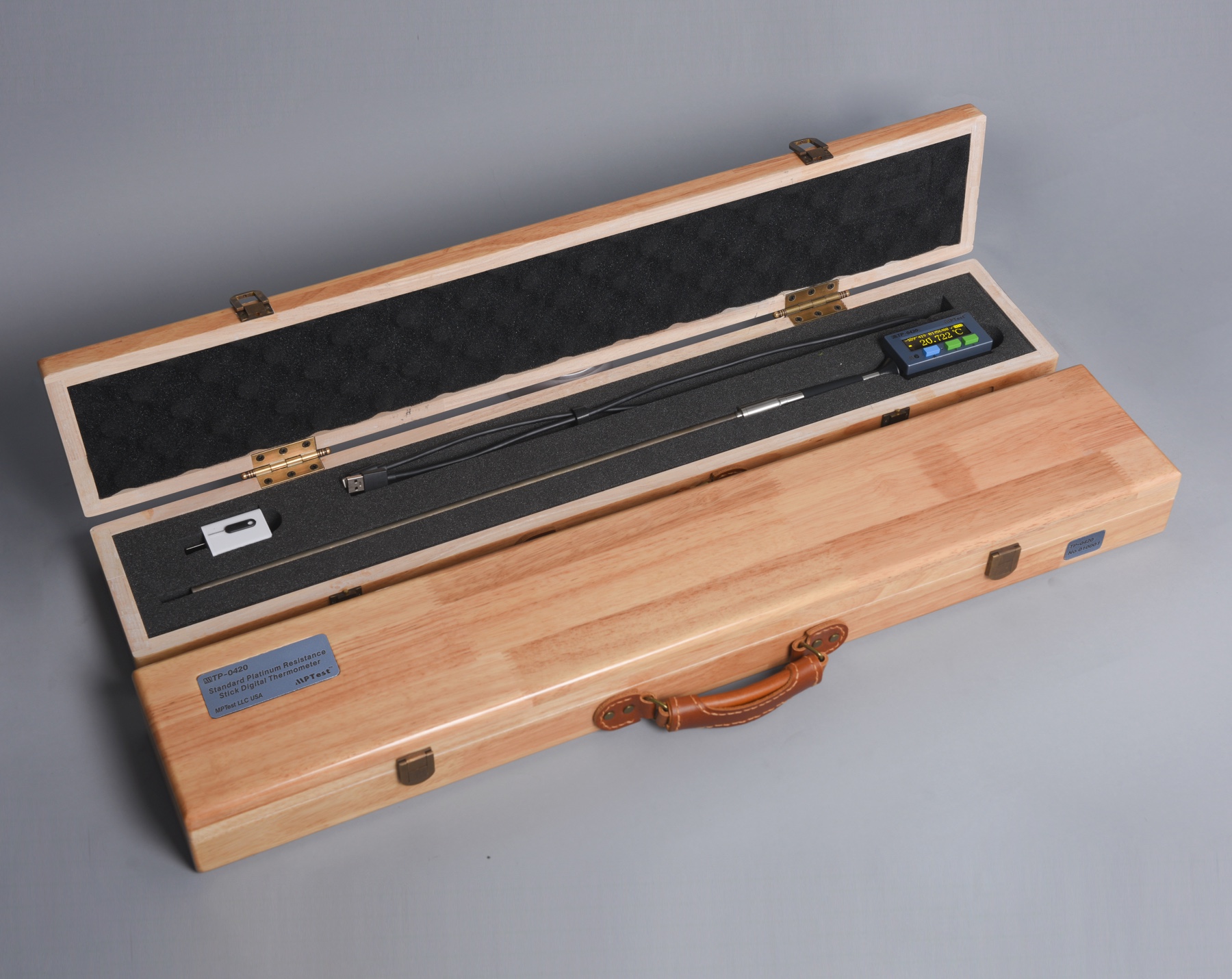

Standard Platinum Resistance Stick Digital Thermometer

Model: TP-0420

The TP-0420 is a rod-type standard platinum resistance thermometer developed by MPTest in compliance with the ITS-90 standard, featuring a digital direct-reading display. As a temperature standard, it is traceable to ITS-90 fixed points. It is divided into temperature zones per ITS-90, with a common range of -189°C (-308.2°F) to 419°C (786.2°F), available in long-stem and short-stem versions, with an accuracy of ±0.025°C (±0.045°F)/year. Error adjustment functions for standard thermometers are password-protected. It includes a rechargeable battery with USB Type-C charging and data transfer interface. The adjustable omnidirectional viewing angle enhances readability. It offers large-capacity data storage and direct Excel export functionality.

  • Specifications

  • Operating Range -189 ℃ to 419 ℃
    Accuracy ±0.025 ℃ /year
    Display Units ℃ / ℉
    Display Resolution 0.001 ℃
    Probe Hysteresis ±0.002 ℃
    Probe Type 25Ω wire-wound SPRT
    Probe Sheath Material INCONEL
    Data Storage Capacity Built-in file system with CSV output
    Data Sampling Rate 1s (fast), 2s (medium), 3s (slow)
    Communication Interface USB Type-C
    Power Supply Built-in rechargeable battery, up to 72 hours of continuous operation
    Device Dimensions 95mm (3.7") x 40mm (1.6") x 35mm (1.4")
    Probe Dimensions Diameter 6.5mm (0.25"), Length 470mm (18.5")
    Net Weight Approximately 965g (34oz)
